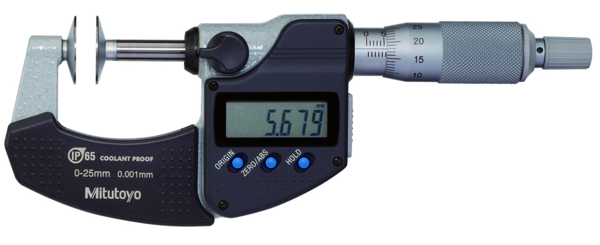

Digital Disk Micrometer - 323

Save 50%

Code: 323-250 (0-25MM)
Price:
Rs. 28,299 Rs. 56,600

Tax included Shipping calculated at checkout

Description

 SPECIFICATIONS


Digital/Analog:

Digital

Inch-Metric:

Metric

Range:

0 - 25 mm

Digital step:

0,001 mm

Maximum Permissible Error J MPE:

±4 µm

Flatness:

1 µm

Parallelism:

4 μm

Display:

LCD, character height 7.5 mm

Measuring face:

Hardened steel, micro-lap finish

Mass:

290 g

Measuring spindle:

With spindle lock, ø6,35 mm, spindle pitch 0,5 mm

Scale:

Thimble and sleeve satin chrome finish, ø18 mm

Measuring force:

3 - 8 N

Power supply:

1 battery SR-44

Battery life:

Approx. 2,4 years

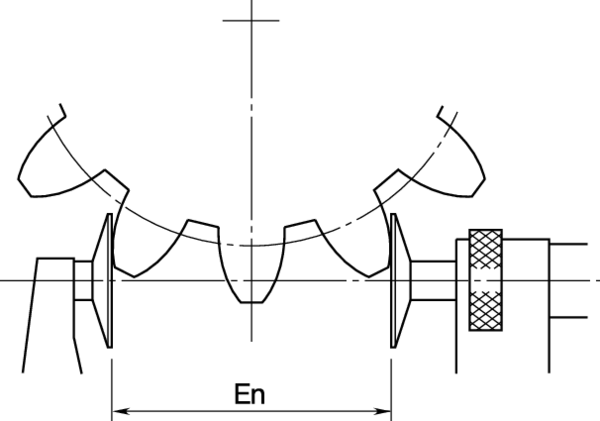

Measurable module:

0.5 - 6

Delivered:

Including box, setting standard (from 25 mm upward), key, 1 battery

ABS / INC (INC ZERO):

Yes

Auto Power OFF after 20 min. non use:

Yes

Function lock:

Yes

HOLD:

Yes




Measurements :-

L:
39.7 mm
a:
4.5 mm
b:
9.2 mm
c:
25 mm
d:
20 mm
