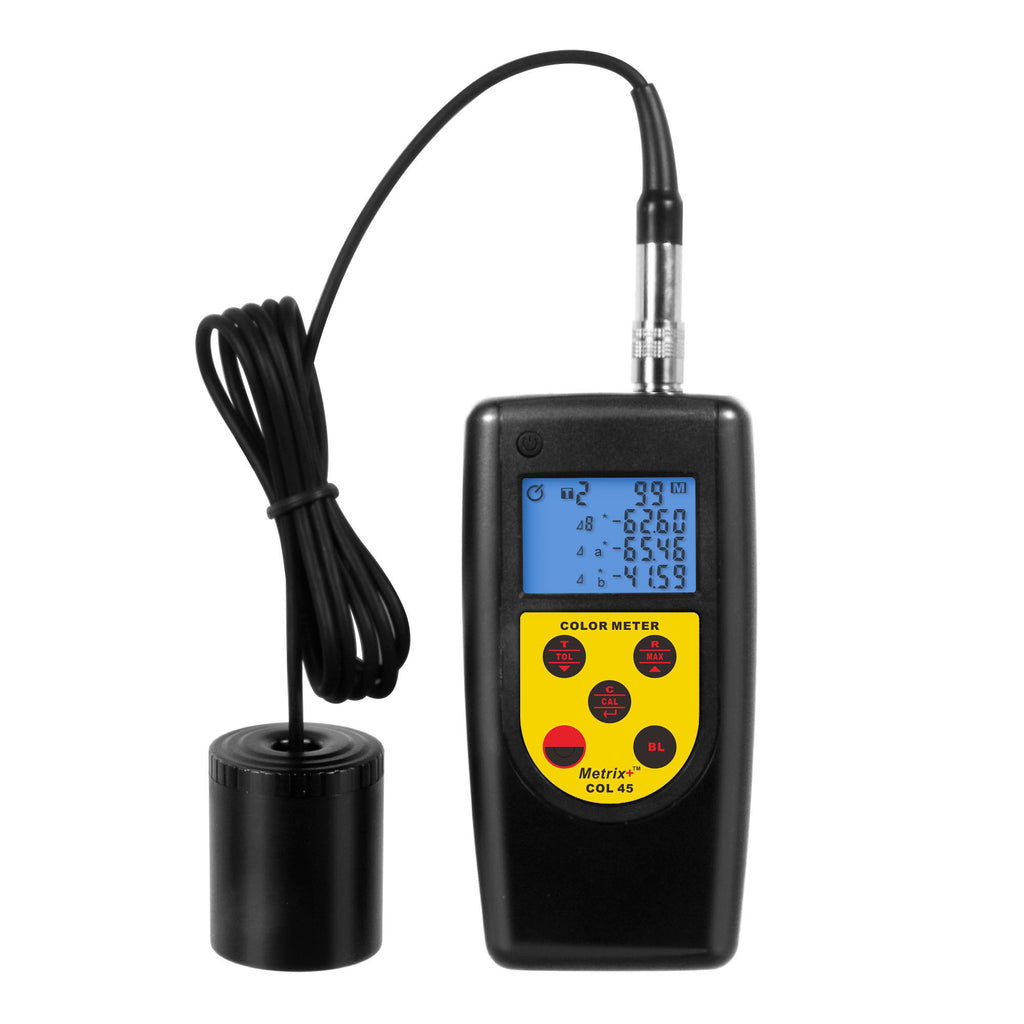

Digital Color Meter - COL 45

Save 39%

Title: Col 45
Measuring Geometery: 45° / 0°
Price:
Rs. 20,800 Rs. 34,034

Tax included Shipping calculated at checkout

Description

This instrument can be used to measure the color of no lighting and non-fluorescent samples such as textile, paper, leathers, painting materials, etc. It can also be used for calculating color differences between two color in any of the six color spaces. It is a useful tool for quality control and wide industrial applications.



    Features :

  •  Six color spaces for measurement and comparison : (L*, a*,b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
  • Statistics of max, min, avg, and standard deviation displayed.
  • Color difference tolerance can be set for PASS/WARN/FAIL tests.
  • 9 different color targets can be stored for comparison.
  • User calibration function.
  • Data storage and recall.
  • Low battery indication and auto power off.
  • https://metrixinstrument.in/product/col-45





  SPECIFICATIONS
Model Metrix+ COL 45
Display Triple 4-digit LCD display
Measuring geometry 45° / 0° ; Illumination at 45°, measurement at 0°
Color space measurement
(L*,a*,b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
Color difference measurement
Δ(L*, a*, b*), Δ(E*ab, C*ab, H*ab), Δ(Y, x, y), Δ(X,Y,Z), Δ(Rs, Gs, Bs) or Δ(WI, YI, Tw)
Illuminate White LED lamp
Measuring area approx. ø 10 mm
Measuring range L* : 5 to 100
Target color memory
9 values, can be set by measurement or manually entered values
Measurement conditions Observe: CIE 2° standard observer
Repeatability
Standard deviation within ΔE*ab 0.5 (measurement conditions: avg of measurements of standard white plate)
Min. interval between measurements approx. 2 seconds
Data storage 99 sets (direct reading from LCD display)
Operating conditions Temperature : 0 ~ 40°C, Humidity : <85% RH
Storage conditions Temperature : -10 ~ 40°C, Humidity : <70% RH
Power 4 x 1.5V AAA (UM-4) batteries
Size and weight 140 x 73 x 35mm; approx. 220g (with batteries)
Standard accessories
Main unit, measuring head (sensor), white calibration card, operational manual, batteries, carrying case
Optional accessories PC interface
