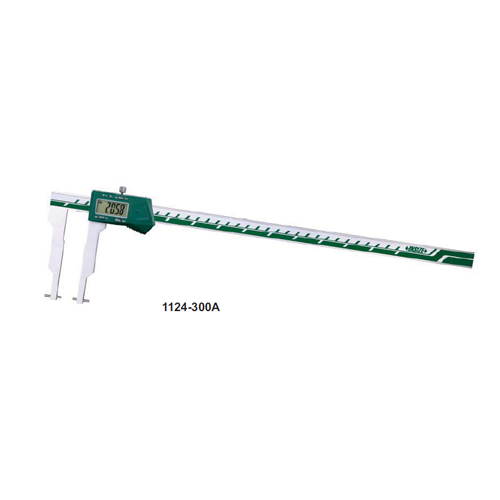

Digital Caliper With Interchangeable Points - 1124

Save 22%

Variant: 1124-300A (0-300MM)
Price:
Rs. 20,120 Rs. 25,753.60

Tax included Shipping calculated at checkout

Description

Features:-

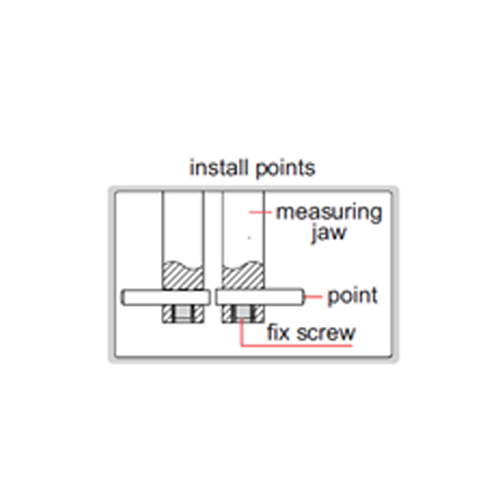

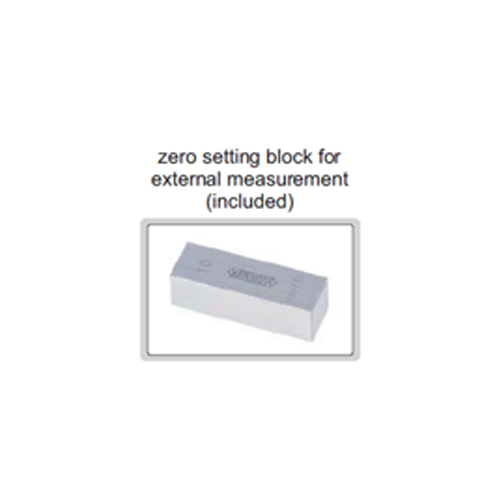

  • Supplied with 4 pairs of points and zero setting block for external measurement.
  • Resolution : 0.01mm/ 0.0005"

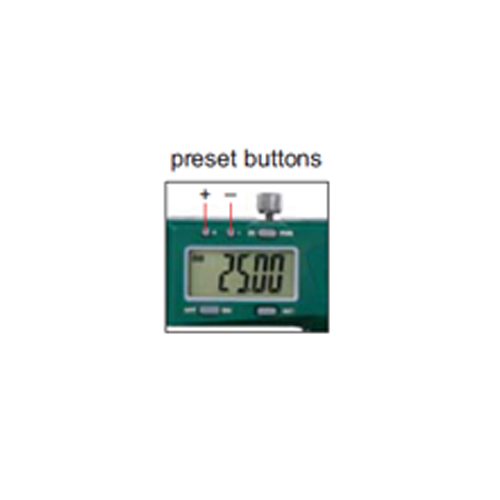

  • Buttons : on /off , set ,mm/inch, preset(+,-)
  • Automatic power off, move the digital unit to turn power
  • Battery CR2032
  • Data Output
  • Made of Stainless Steel

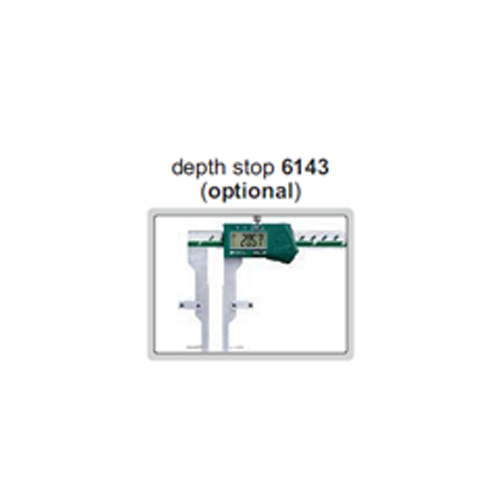

  • Optional Accessory: points (code 1526-T101, 7392,7391,7381,7321 depth stop (code 6143), Data Output  cable  (Cable 7315-21, 7302-21)
  • https://youtu.be/-5kOGaRbafU
  •



           SPECIFICATIONS

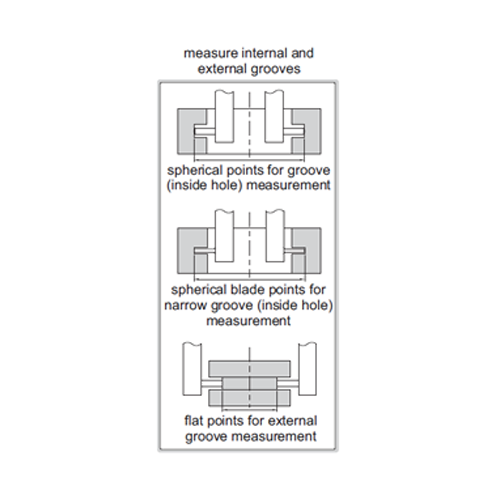

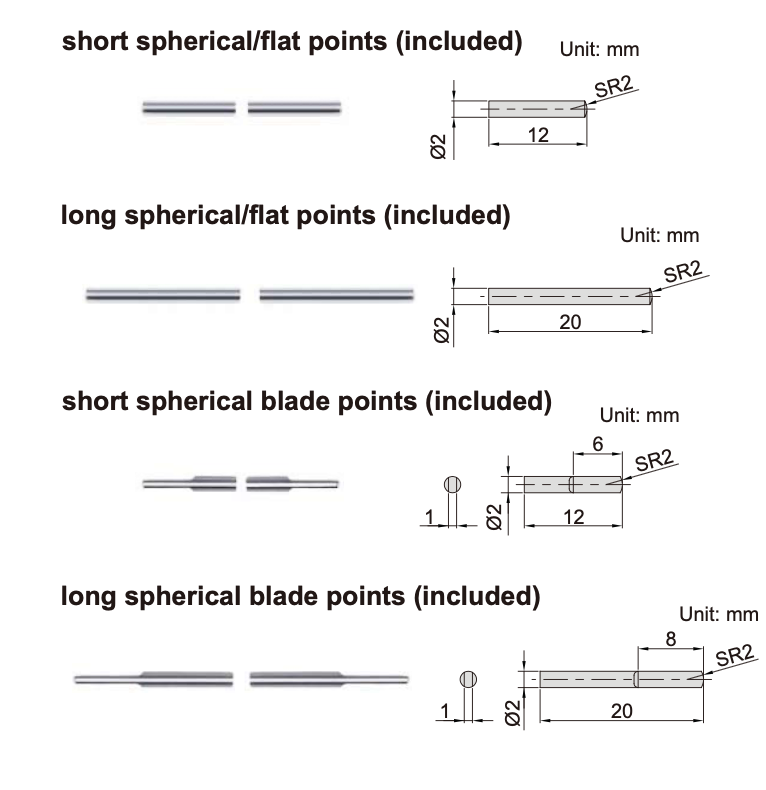

    Points Range Accuracy Application
    short spherical/flat points 24-324mm/1-12.7"(internal) / 0-288mm/0-11.3" (external) +0.04mm Spherical points for grooves inside hole (small hole)flat points for external grooves
    long spherical /flat points 40-340mm/1.5-13.3"(internal) / 0-272mm/0-10.7" (external) +0.04mm Spherical points for grooves inside hole (Large hole)flat points for external grooves
    short spherical blade points 24-324mm/1-12.7"(internal) / 0-288mm/0-11.3" (external) +0.04mm For narrow grooves inside hole (small hole)
    long spherical blade points 40-340mm/1.5-13.3"(internal) / 0-272mm/0-10.7" (external) +0.04mm For narrow grooves inside hole (Large hole)
