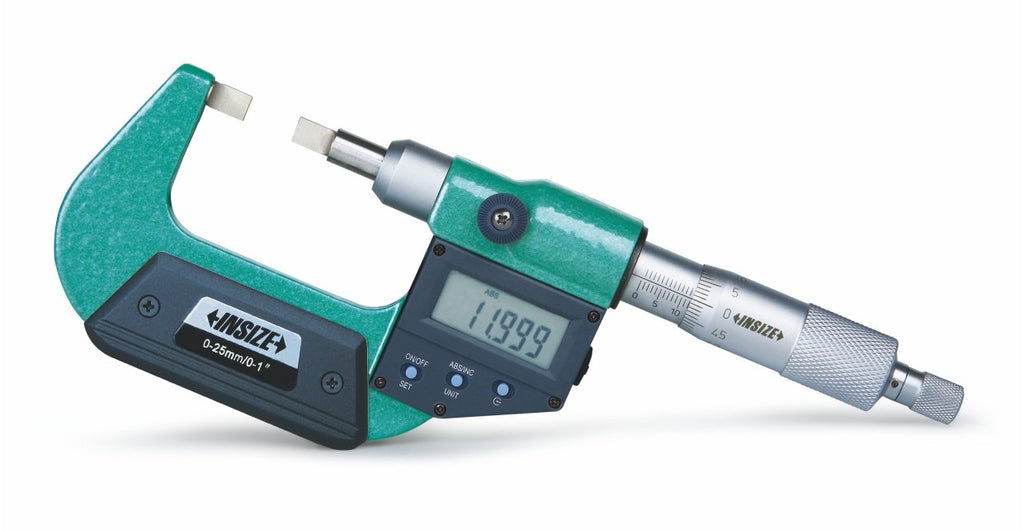

Digital Blade Micrometers - 3532

Save 25%

Size: 3532-25A (0-25mm)
Price:
Rs. 17,159 Rs. 22,820

Tax included Shipping calculated at checkout

Description

Features:-

  • Measure the groove diameter of shafts and keyways
  • Resolution : 0.001mm/0.00005''
  • Button function: on/off, set ,mm/inch, ABS/INC
  • Data Output
  • LR44 battery, automatic power off
  • Non-rotating spindle
  • Ratchet stop
  • Supplied with setting standards (except 0-25mm/0-1")
  • Optional accessory : data output cable (code 7315,-7302,-7305-)

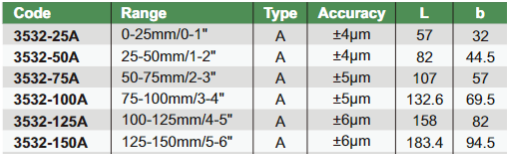

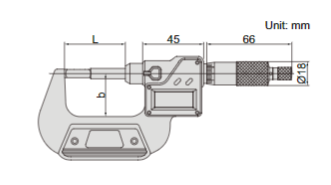

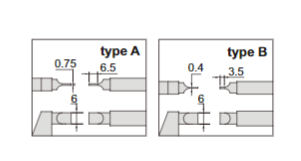

Code Range Type Accuracy L b
3532-25A 0-25mm/0-1'' A ±4µm 57 32
3532-50A 25-50mm/1-2'' A ±4µm 82 44.5
3532-75A 50-75mm/2-3'' A ±5µm 107 57
3532-100A 75-100mm/3-4'' A ±5µm 132.6 69.5
3532-125A 100-125mm/4-5" A ±6µm 158 82
3532-150A 125-150mm/5-6" A ±6µm 183.4 94.5
