Differential Pressure Manometer - 0140-DP05

Save 25%

Size: 0140-DP05
Price:
Rs. 12,729 Rs. 16,929

Tax included Shipping calculated at checkout

Description

Features:-

  • Offset and differential measurement
  • Record maximum/minimum/average value with relative timestamp
  • Built-in USB interface for data transmission
  • Unit: psi, inH₂O, bar, mbar, kPa, inHg, mmHg, oz/in², ftH₂O, cmH₂O, kg/cm²
  • Zero adjust
  • Data hold
  • Display with backlight
  • Low battery indication
  • Automatic power off
  • Safety rating: CAT III 600

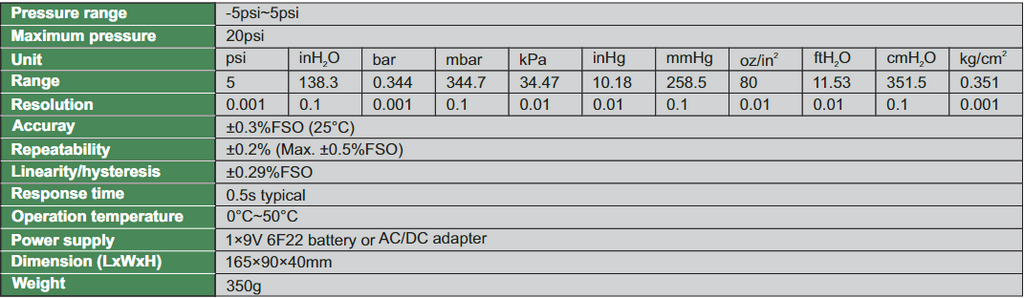

    Code 0140-DP05
    Pressure range 5psi~5psi
    Maximum pressure 20psi
    Unit psi inH₂O bar mbar kPa inHg mmHg oz/in² ftH₂O cmH₂O kg/cm²
    Range 5 138.3 0.344 344.7 34.47 10.18 258.5 80 11.53 351.5 0.351
    Resolution 0.001 0.1 0.001 0.1 0.01 0.01 0.1 0.01 0.01 0.1 0.001
    Accuracy 0.3%FSO (25°C)
    Repeatability 0.2% (Max, +0.5%FSO)
    Linearity/hysteresis 0.29%FSO
    Response time 0.5s  typical
    operation temperature 0°C~50°C
    Power supply  1x9V 6F22 battery or AC/DC adapter
    Dimension (LxWxH) 165x90x40mm
    Weight 350g
