DC Resistance Tester - 9655

Save 25%

Model no.: 9655-RM03
Price:
Rs. 59,095 Rs. 78,599

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Maximum reading: 30000
  • Basic accuracy:0.1%
  • Short circuit zero function
  • Temperature compensation function
  • Comparator: pass or fail judge

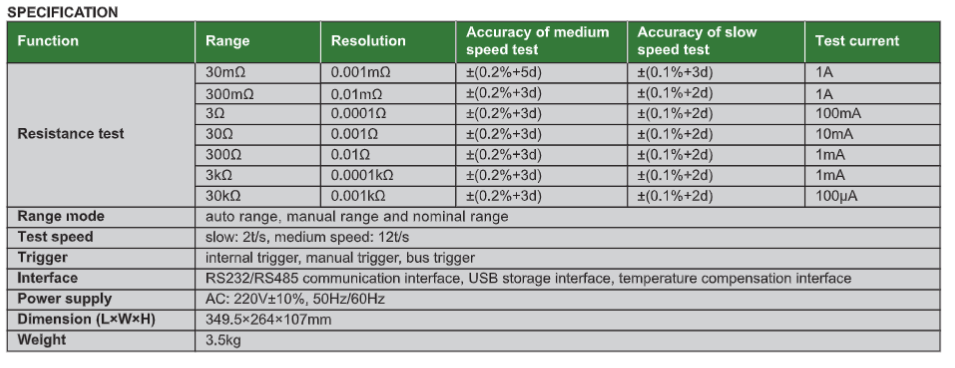

Function Range Resolution Accuracy of medium speed test Accuracy of slow speed test Test current
Resistance test 30mΩ 0.001mΩ ±(0.2%+5d) ±(0.1%+3d) 1A
300mΩ 0.01mΩ ±(0.2%+3d) ±(0.1%+2d) 1A
0.0001Ω ±(0.2%+3d) ±(0.1%+2d) 100mA
30Ω 0.001Ω ±(0.2%+3d) ±(0.1%+2d) 10mA
300Ω 0.01Ω ±(0.2%+3d) ±(0.1%+2d) 1mA
3kΩ 0.0001kΩ ±(0.2%+3d) ±(0.1%+2d) 1mA
30kΩ 0.001kΩ ±(0.2%+3d) ±(0.1%+2d) 100μA
Range mode auto range, manual range and nominal range
Test speed slow: 2t/s, medium speed: 12t/s
Trigger internal trigger, manual trigger, bus trigger
Interface RS232/RS485 communication interface, USB storage interface, temperature compensation interface
Power supply AC: 220V±10%, 50Hz/60Hz
Dimension (L×W×H) 349.5×264×107mm
Weight 3.5kg
