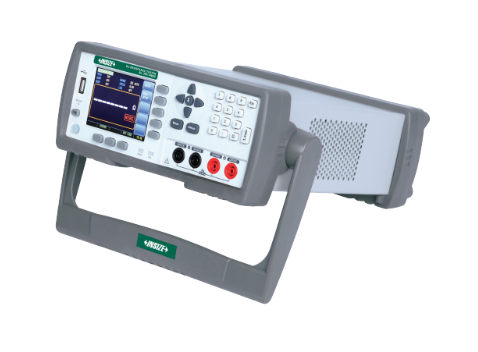

DC Resistance Tester -9651

Save 25%

Size: 9651-RM20
Price:
Rs. 97,589 Rs. 129,793

Tax included Shipping calculated at checkout

Description

Specification:-

  • Maximum reading: 220000
  • Basic accuracy: 0.05%
  • 3.5 inch LCD screen
  • Temperature compensation function
  • Short-circuit zeroing calibration
  • Bad contact detection
  • Comparator: pass or fail judge
  • Keyboard lock function

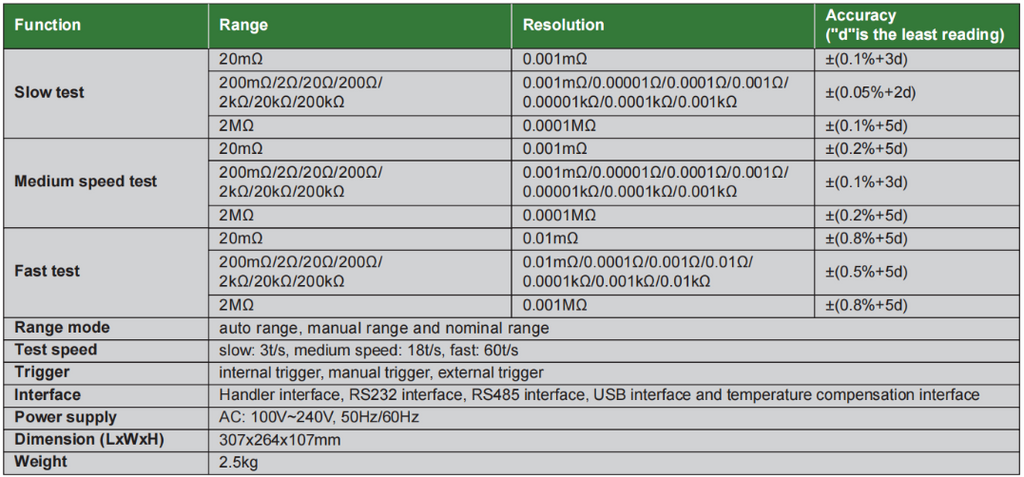

Function Range Resolution Accuracy ("d"is the least reading)
Slow test 20mΩ 0.001mΩ ±(0.1%+3d)
200mΩ/2Ω/20Ω/200Ω/ 2kΩ/20kΩ/200kΩ 0.001mΩ/0.00001Ω/0.0001Ω/0.001Ω/ 0.00001kΩ/0.0001kΩ/0.001kΩ ±(0.05%+2d)
2MΩ 0.0001MΩ ±(0.1%+5d)
20mΩ 0.001mΩ ±(0.2%+5d)
Medium speed test 200mΩ/2Ω/20Ω/200Ω/ 2kΩ/20kΩ/200kΩ 0.001mΩ/0.00001Ω/0.0001Ω/0.001Ω/ 0.00001kΩ/0.0001kΩ/0.001kΩ ±(0.1%+3d)
2MΩ 0.0001MΩ ±(0.2%+5d)
Fast test 20mΩ 0.01mΩ ±(0.8%+5d)
200mΩ/2Ω/20Ω/200Ω/ 2kΩ/20kΩ/200kΩ 0.01mΩ/0.0001Ω/0.001Ω/0.01Ω/ 0.0001kΩ/0.001kΩ/0.01kΩ ±(0.5%+5d)
2MΩ 0.001MΩ ±(0.8%+5d)
Range mode auto range manual range and nominal range
Test speed slow: 3t/s medium speed: 18t/s fast: 60t/s
Trigger internal trigger manual trigger external trigger

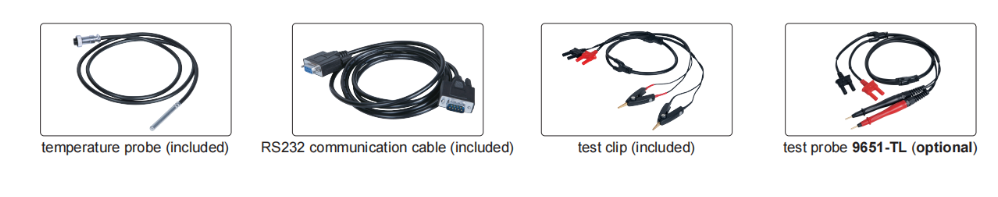

Interface Handler interface RS232 interface RS485 interface USB interface and temperature compensation interface
Power supply AC: 100V~240V 50Hz/60Hz
Dimension (LxWxH) 307x264x107mm
Weight 2.5kg
