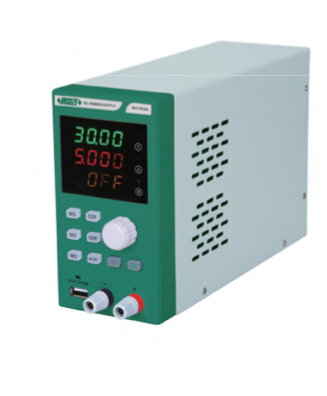

DC Power Supply - 9911

Save 25%

Size: 9911-PS305
Price:
Rs. 6,000 Rs. 7,980

Tax included Shipping calculated at checkout

Description

Specification:-

  • Four-digit LED display
  • Output power display
  • Output switch control
  • Panel locking function to prevent misoperation
  • USB interface for power supply
  • OVP/OCP protection
  • 3 shortcut keys for presetting
  • https://youtu.be/0-TdpqqdOAc

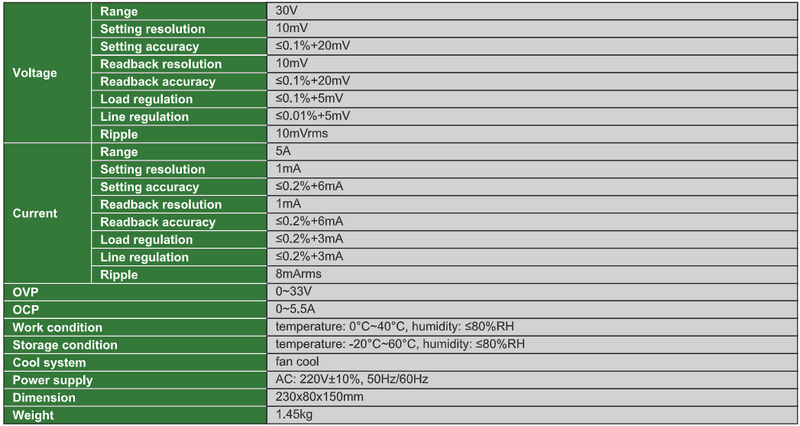

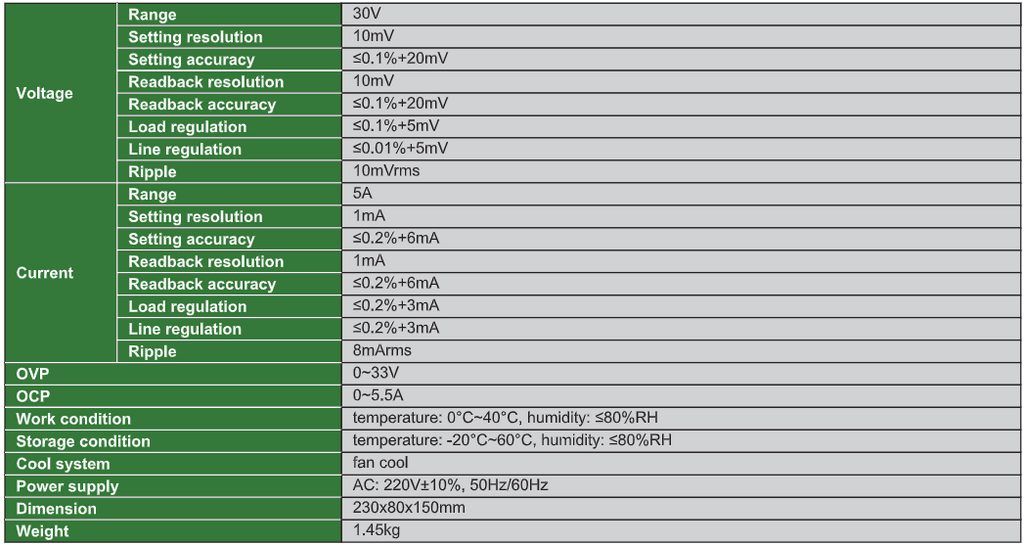

Voltage Range 30V
Setting resolution 10mV
Setting accuracy ≤0.1%+20mV
Readback resolution 10mV
Readback accuracy ≤0.1%+20mV
Load regulation ≤0.1%+5mV
Line regulation ≤0.01%+5mV
Ripple 10mVrms
Current Range 5A
Setting resolution 1mA
Setting accuracy ≤0.2%+6mA
Readback resolution 1mA
Readback accuracy ≤0.2%+6mA
Load regulation ≤0.2%+3mA
Line regulation ≤0.2%+3mA
Ripple 8mArms
OVP 0~33V
OCP 0~5.5A
Work condition temperature: 0°C~40°C, humidity: ≤80%RH
Storage condition temperature: -20°C~60°C, humidity: ≤80%RH
Cool system fan cool
Power supply AC: 220V±10%, 50Hz/60Hz
Dimension 230x80x150mm
Weight 1.45kg
