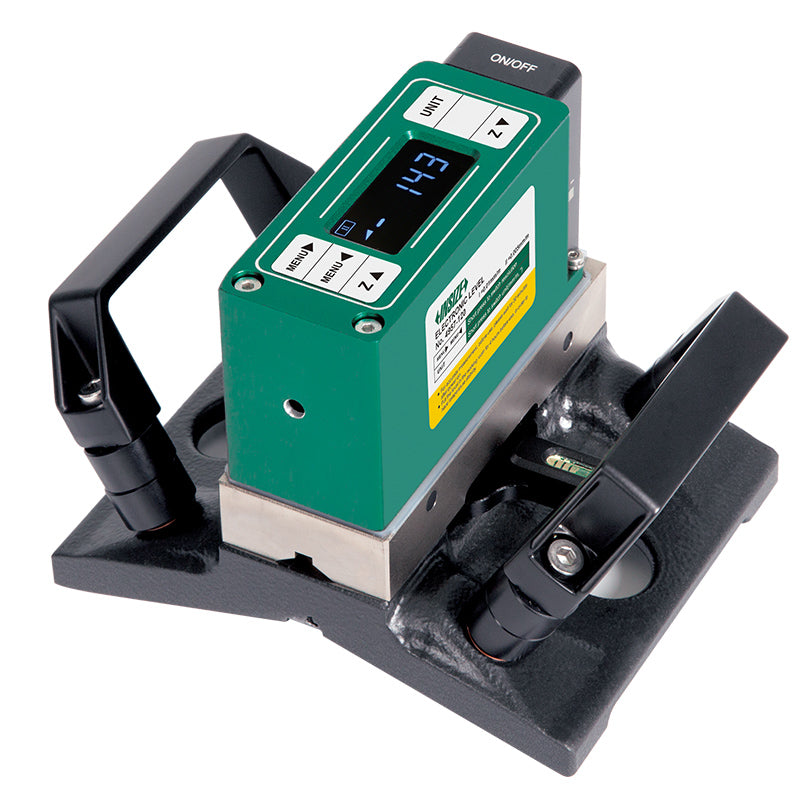

Cylinder Straightness Measuring Instruments - 4957

Save 25%

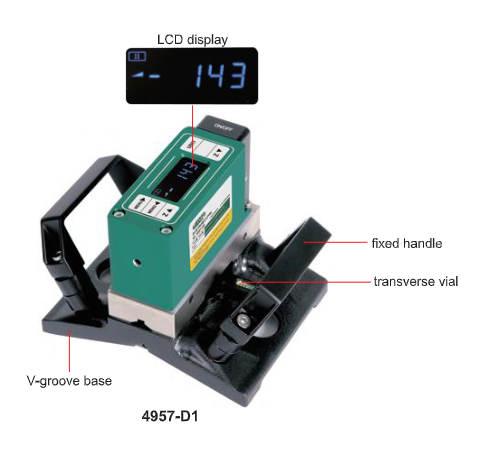

Model no.: 4957-D1
Price:
Rs. 333,429 Rs. 444,569

Tax included Shipping calculated at checkout

Description

Features:-

  • Measure the straightness of cylinders, calibrate the horizontal installation of cylindrical equipments

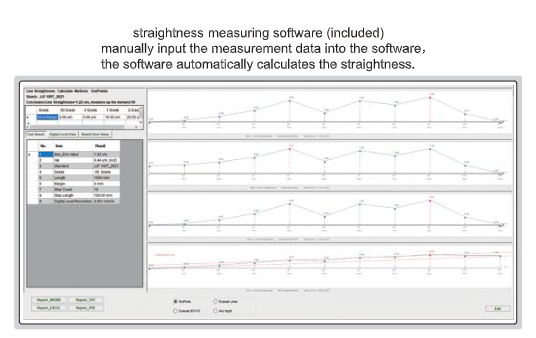

  • Android APP and straightness measuring software are included
  • Power supply: 1 x 18350 Li-ion battery, for 30h continuous working
  • Measure in mm/m"

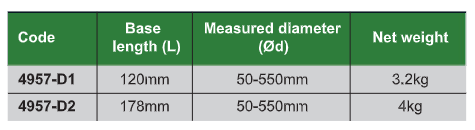

Code

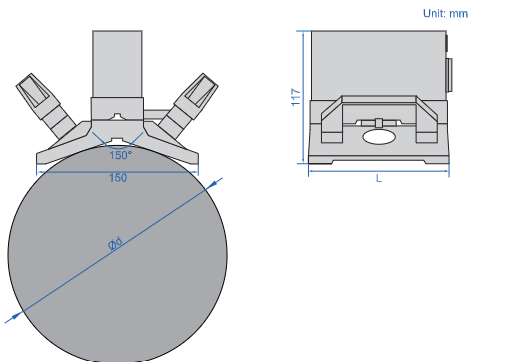

Base length (L)

Measured diameter (Ød)

Net weight

4957-D1

120mm

50-550mm

3.2kg

4957-D2

178mm

50-550mm

4kg

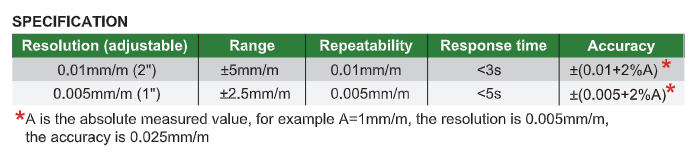

Resolution (adjustable)

Range

Repeatability

Response time

Accuracy

0.01mm/m (2")

±5mm/m

0.01mm/m

<3s

±(0.01+2%A) *

0.005mm/m (1")

±2.5mm/m

0.005mm/m

<5s

±(0.005+2%A) *
