Cyclic Corrosion Salt Spray Test Chamber - SFT-M/U/W

Save 25%

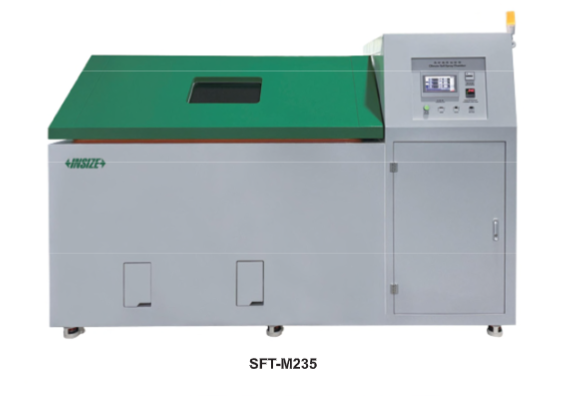

Model no.: SFT-M235
Price:
Rs. 3,816,790 Rs. 5,076,330

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for automotive industry, marine, electronic industry, paint and coating, construction, material, etc.
  • Titanium plate for better corrosion resistance
  • Advanced spraying system ensures the uniformity of the salt spray sedimentation in the chamber
  • Multiple safety protections, such as leakage protection, overload protection, over-temperature protection, etc.
  • Software is included support remote control and data exporting

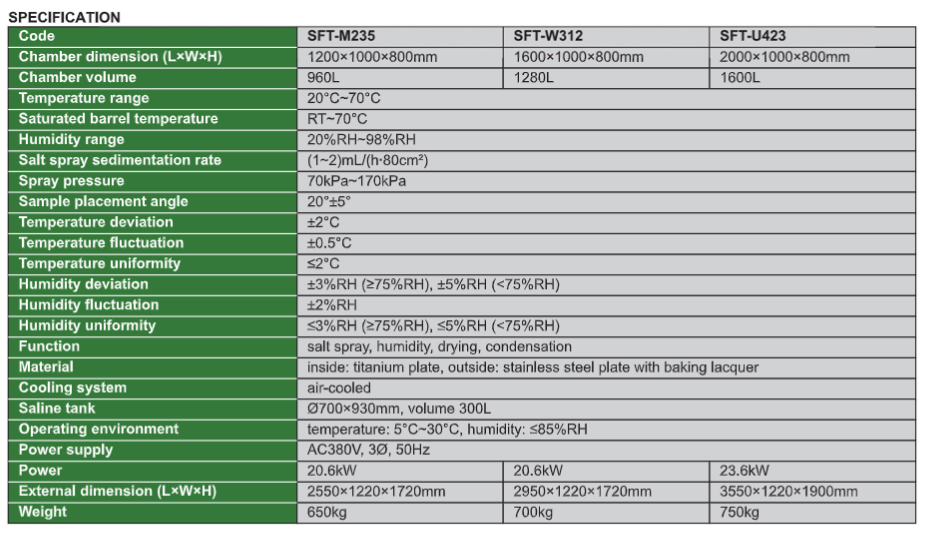

Code SFT-M235 SFT-W312 SFT-U423
Chamber dimension (L×W×H) 1200×1000×800mm 1600×1000×800mm 2000×1000×800mm
Chamber volume 960L 1280L 1600L
Temperature range 20°C~70°C
Saturated barrel temperature RT~70°C
Humidity range 20%RH~98%RH
Salt spray sedimentation rate (1~2)mL/(h·80cm²)
Spray pressure 70kPa~170kPa
Sample placement angle 20°±5°
Temperature deviation ±2°C
Temperature fluctuation ±0.5°C
Temperature uniformity ≤2°C
Humidity deviation ±3%RH (≥75%RH) ±5%RH (<75%RH)
Humidity fluctuation ±2%RH
Humidity uniformity ≤3%RH (≥75%RH) ≤5%RH (<75%RH)
Function salt spray humidity drying condensation
Material inside titanium plate outside stainless steel plate with baking lacquer
Cooling system air-cooled
Saline tank Ø700×930mm volume 300L
Operating environment temperature 5°C~30°C humidity ≤85%RH
Power supply AC380V 3Ø 50Hz
Power 20.6kW 20.6kW 23.6kW
External dimension (L×W×H) 2550×1220×1720mm 2950×1220×1720mm 3550×1220×1900mm
Weight 650kg 700kg 750kg
