Contact/Non-Contact Tachometer - 9225

Save 25%

Size: 9225-405
Price:
Rs. 3,879 Rs. 5,159

Tax included Shipping calculated at checkout

Description

Features:-

  • 2 Measuring method, contact and non contact
  • Can be measure rotary speed and line speed
  • Automatically save the maximum value, minimum value and the last value, 500 data can be stored during continuous measurement
  • Automatic power off

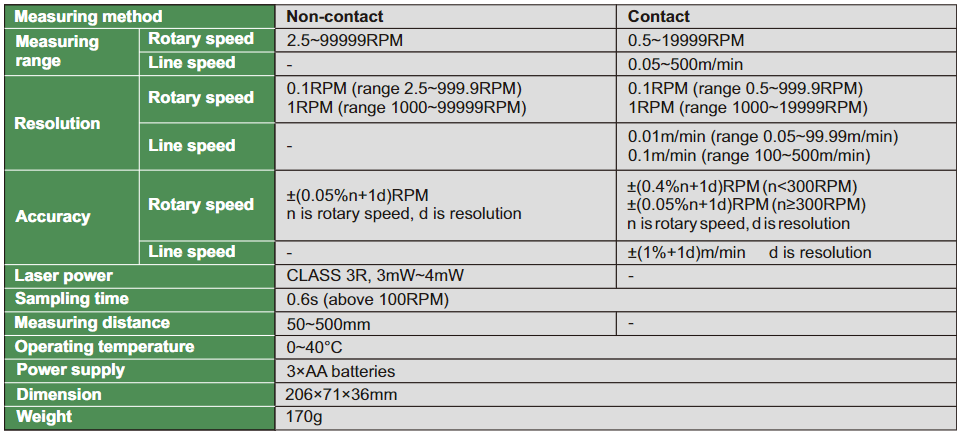

    Code 9225-405
    Measuring method non-contact contact
    Measuring range Rotary speed 2.5~99999RPM 0.5~19999RPM
    line speed   ------ 0.05~500m/min
    Resolution Rotary speed 0.1RPM (range 2.5-999.9RPM) 1RPM(range 1000~99999RPM) 0.1RPM (range 2.5-999.9RPM) 1RPM(range 1000~99999RPM)
    line speed   ---- 0.01m/min (range 0.05~99.99m/min) 0.1m/min (range 100~500m/min)
    Accuracy Rotary speed +(0.05%n+1d)RPM n is rotary speed, d is resolution +(0.4%n+1d) RPM (n<300RPM) (0.05%n+1d) RPM (n>300RPM) n is rotary speed, d is resolution
    line speed   ------ +(1%+1d)m/min d is resolution
    Laser power  Class 3R, 3mW~4mW
    Sampling time 0.6s (above 1000RPM)
    Measuring distance 50~500mm
    Operation temperature 0~40°C
    Power supply 3xAA batteries
    Dimension 206x71x36mm
    Weight 170g
