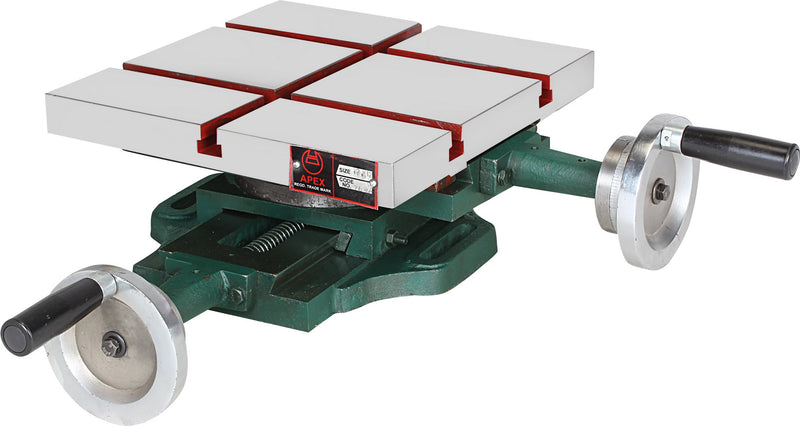

Compound Sliding Table (With Calibrated Wheels & Swivel Graduated Base) - Apex Code 707A

Save 22%

Size: 12 x 12 Inches / 300 x 300mm
Price:
Rs. 23,099 Rs. 29,567

Tax included Shipping calculated at checkout

Description

 Features :

  • The T-Slots are machined from Solid.
  • Equipped with two-axis positioning.
  • Dovetailed slides have adjustable steel gibs to compensate for wear.
  • The surface table can swivel all around and 0° is marked to show the angular movement.
  • The base has bolt slots for machine mounting.
Application :
  • These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations
Construction :
  • Casting is the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
  • Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and the minimum back lash
  • The top surface of the table has two equally spaced cross T-Slots & one longitudinal T-Slot.

Finish: Amazon Green






SPECIFICATIONS
RANGE 12 x 12 Inches 12 x 20 Inches 16 x 16 Inches
Height Overall (In mm) 110 143 143
Size of table (In mm) 300 x 300 300 x 500 400 x 400
Length Overall (In mm) 510 750 645
Travel Both ways (In mm)
200 x 200 300 x 400 300 x 300
T-slots Size (In mm) 13 16 16
Swivel Graduation 360° 360° 360°
Weight In (Kgs) 46 95 105
