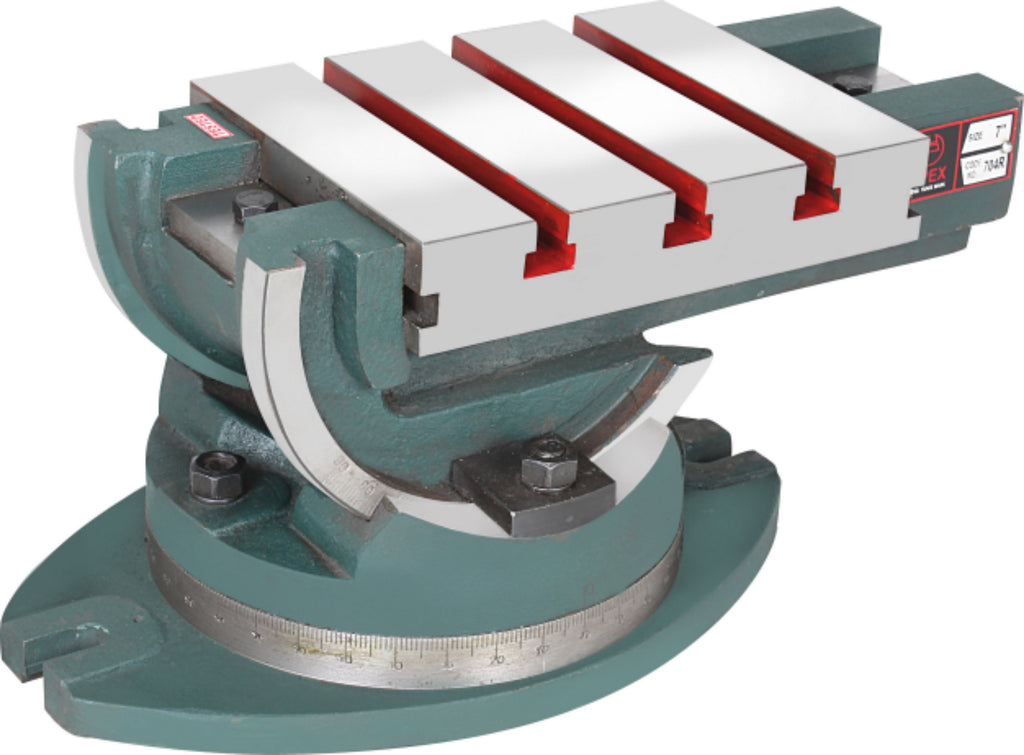

Compound Angle Table (Rectangular Table) - Apex Code 704 R

Save 22%

Table Size: 9" × 7" Inches / 225 x 175mm
Price:
Rs. 25,199 Rs. 32,255

Tax included Shipping calculated at checkout

Description

 Features :

  • Movement on the table are indexed fully 360 degree in the Horizontal plane 90 degree in the Vertical. So that any combination of angles may be obtained "T" Slots in the table are machined from the solid and a hole is bored centrally and fitted with steel Sleeves for receiving Spigots. The table swivel on a ground steel spigot and can be locked in any position by steel clamp shown.
  • Code 704R: SG Ductile Iron Body

Finish: Hammer tone mid-grey.





   SPECIFICATIONS
RANGE 9" x 7" Inches
Height (In mm) 190
Size of table (In mm) 225
Length (In mm) 390
Tenon slots size (In mm) 20
Opening of Jaws (In mm)
75
T-slots size (In mm) 13
Weight In (Kgs) 42
