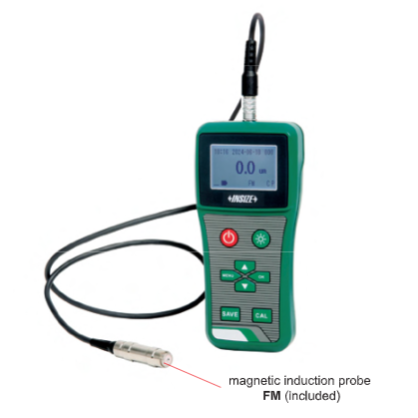

Coating Thickness Gauge(Advance Type)- 5402

Save 25%

Size: 5402-TC21
Price:
Rs. 105,675 Rs. 140,546

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Magnetic Induction probe (FM) measures the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate.
  • Substrate: steel, iron, alloy, hard magnetic steel, etc.
  • Coating: zinc, aluminum, chrome, copper, rubber, paint, etc.
  • Eddy current probe (NM) measures the thickness of non-conductive coating on non-magnetic metal substrate.
  • Substrate: copper, aluminum, zinc, tin, etc.
  • Coating: rubber, paint, plastic, anodized film, etc.
  • Real-time temperature compensation guarantees high accuracy, thin plating and oxide layer less than 20µm can be measured accurately
  • Reduces the effects of electromagnetic interference and hand-held operation
  • Probe can be re-matched after abrasion
  • Tolerance measurement with adjustable alarm threshold
  • USB & bluetooth interface for data transmission & online measurement in real time.
  • Coupling status indication
  • Support cable printer

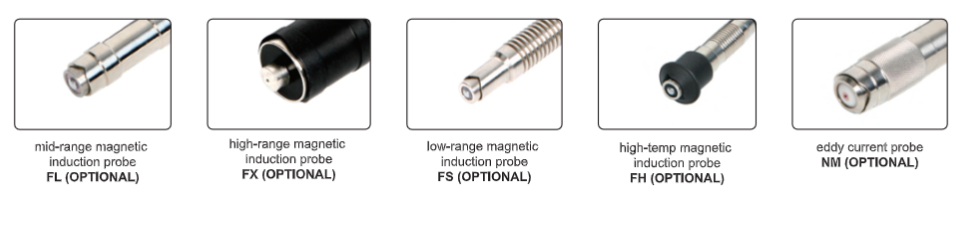

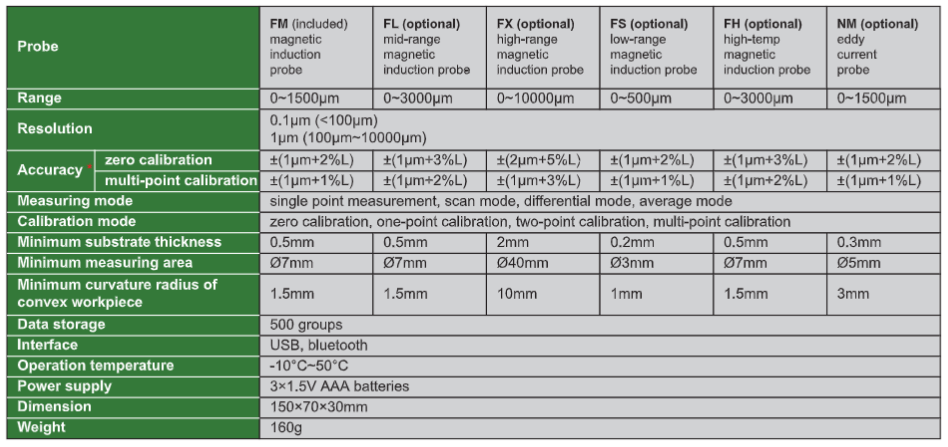

Probe FM (included) magnetic induction probe FL (optional) mid-range magnetic induction probe FX (optional) high-range magnetic induction probe FS (optional) low-range magnetic induction probe FH (optional) high-temp magnetic induction probe NM (optional) eddy current probe
Range 0~1500μm 0~3000μm 0~10000μm 0~500μm 0~3000μm 0~1500μm
Resolution 0.1µm (<100µm) 1µm (100µm~10000μm)
Accuracy zero calibration   ±(1µm+2%L) ±(1µm+3%L) ±(2µm+5%L) ±(1µm+2%L) ±(1µm+3%L) ±(1µm+2%L)
multi-point calibration  ±(1µm+1%L) ±(1µm+2%L) ±(1µm+3%L) ±(1µm+1%L) ±(1µm+2%L) ±(1µm+1%L)
Measuring mode single point measurement, scan mode, differential mode, average mode
Calibration mode zero calibration, one-point calibration, two-point calibration, multi-point calibration
Minimum substrate thickness 0.5mm 0.5mm 2mm 0.2mm 0.5mm 0.3mm
Minimum measuring area Ø7mm Ø7mm Ø40mm Ø3mm Ø7mm Ø5mm
Minimum curvature radius of convex workpiece 1.5mm 1.5mm 10mm 1mm 1.5mm 3mm
Data storage 500 groups
Interface USB, bluetooth
Operation temperature -10°C~50°C
Power supply 3×1.5V AAA batteries
Dimension 150×70×30mm
Weight 160g
