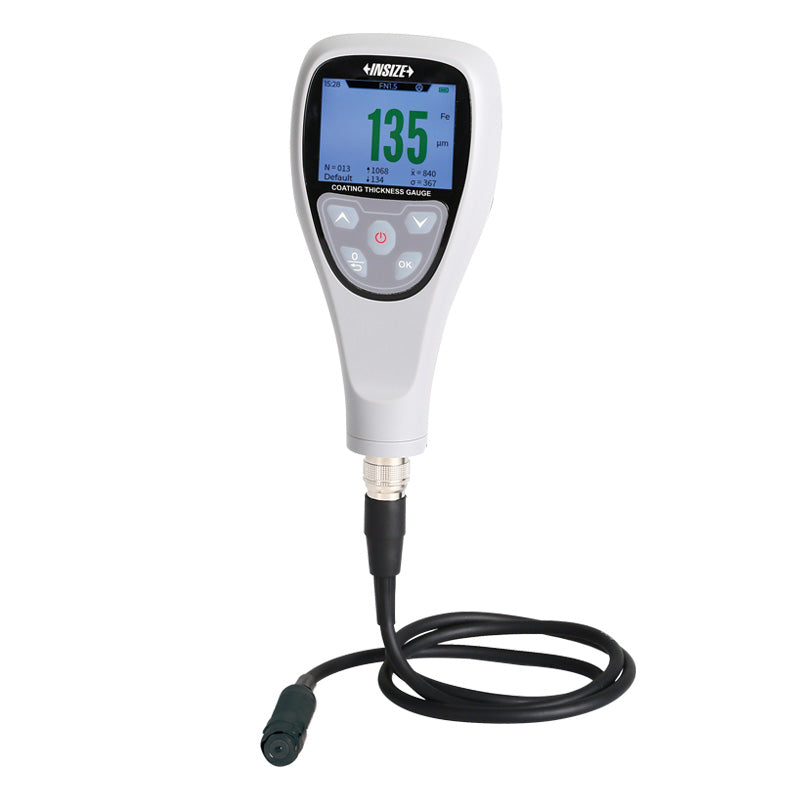

Coating Thickness Gauge (Advanced Type) : 5413

Save 25%

Model no.: 5413-TC31
Price:
Rs. 43,939 Rs. 58,589

Tax included Shipping calculated at checkout

Description

Features:-

  • Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate. Substrate: iron, steel, magnetic stainless steel. Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
  • Can measure the thickness of non-conductive coating on non-magnetic metal substrate. Substrate: copper, aluminum, zinc, non-magnetic stainless steel. Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
  • Zinc coating weight mode displays zinc layer thickness and weight
  • Upper and lower limits can be set, over-limit alarm alert

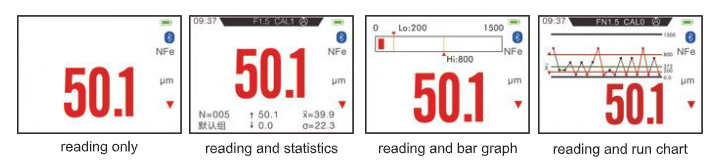

  • Data statistics and chart analysis
  • Color LCD screen automatically rotates for different angles
  • Supplied with manufacturer inspection certificate

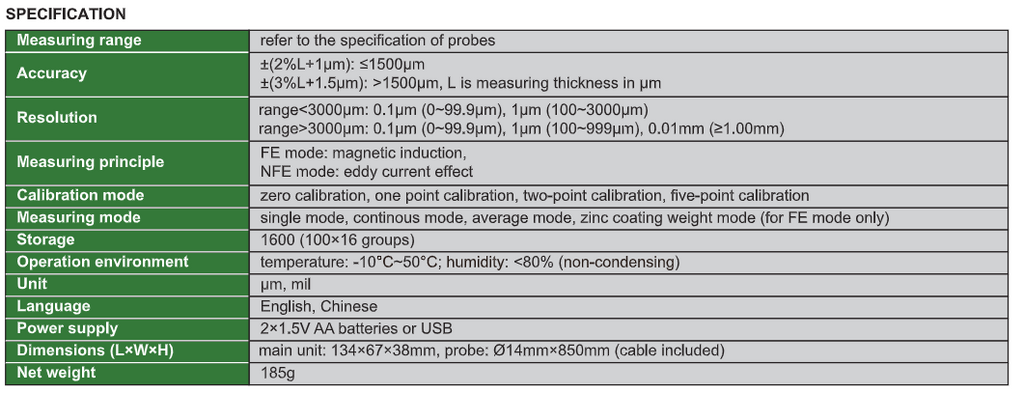

Specification:-

Code 5413-TC31

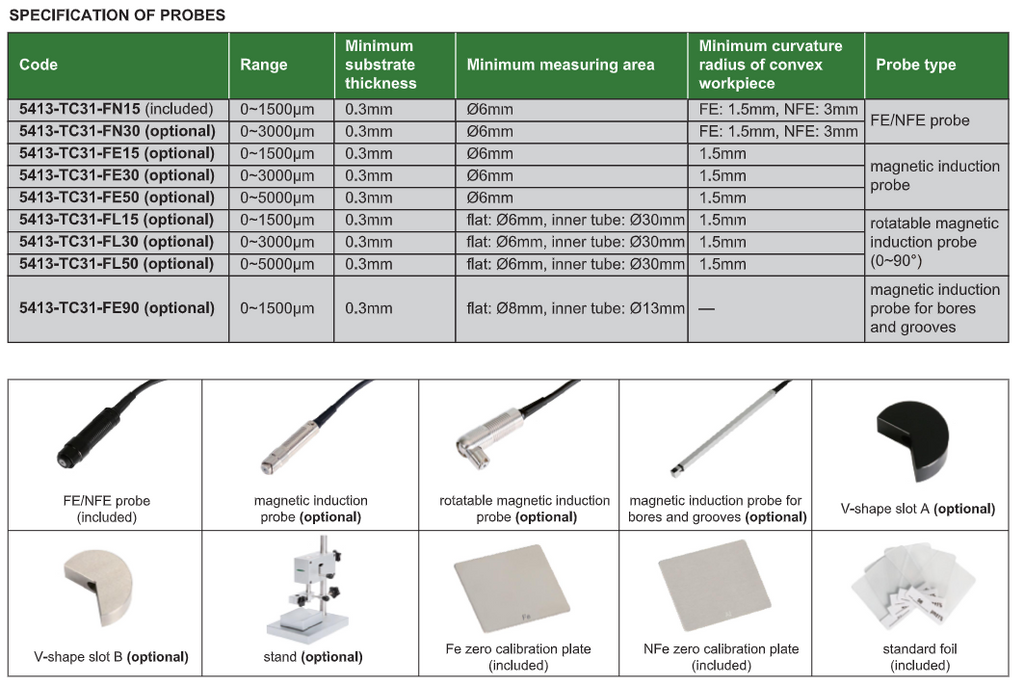

Measuring range refer to the specification of probes
Accuracy ±(2%L+1μm): ≤1500μm, ±(3%L+1.5μm): >1500μm, L is measuring thickness in μm
Resolution range<3000μm: 0.1μm (0~99.9μm), 1μm (100~3000μm); range>3000μm: 0.1μm (0~99.9μm), 1μm (100~999μm), 0.01mm (≥1.00mm)
Measuring principle FE mode: magnetic induction, NFE mode: eddy current effect
Calibration mode zero calibration, one point calibration, two-point calibration, five-point calibration
Measuring mode single mode, continuous mode, average mode, zinc coating weight mode (for FE mode only)
Storage 1600 (100×16 groups)
Operation environment temperature: -10°C~50°C; humidity: <80% (non-condensing)
Unit μm, mil
Language English, Chinese
Power supply 2×1.5V AA batteries or USB
Dimensions (L×W×H) main unit: 134×67×38mm, probe: Ø14mm×850mm (cable included)
Net weight 185g

Standard Delivery:-

Main unit 1pc
Probe (5413-TC31-FN15) 1pc
Fe zero calibration plate 1pc
NFe zero calibration plate 1pc
Standard foil 1 set
1.5V AA battery 2pcs
Protective case 1pc
