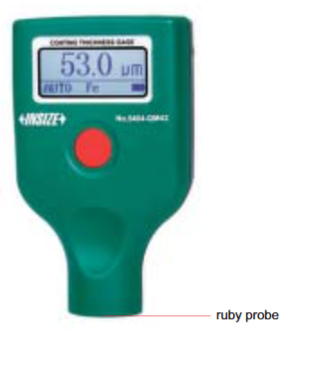

Coating Thickness Gauge - 5404

Save 25%

Size: 5404-QM42
Price:
Rs. 14,419 Rs. 19,175

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Suitable for both magnetic and non-magnetic metal substrates
  • Can measure the thickness of non-magnetic coating and non-metallic
    coating on magnetic metal substrate
    Substrate: iron, steel, magnetic stainless steel Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
  • Can measure the thickness of non-conductive coating on non-magnetic metal substrate
    Substrate: copper, aluminum, zinc, non-magnetic stainless steel
    Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)

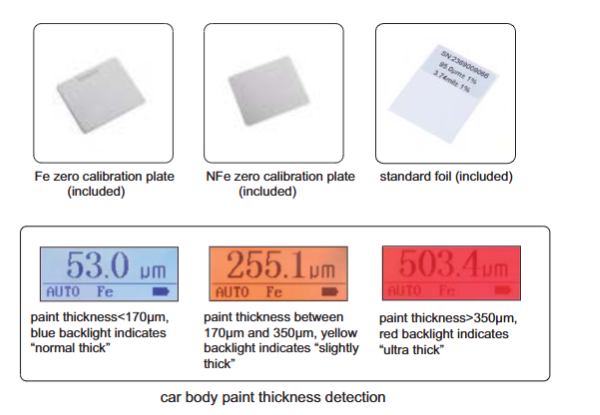

  • Can quickly detect the paint thickness of iron and aluminum body of car, three colors of backlight indication
  • can identify non-metal shell and iron powder putty layer

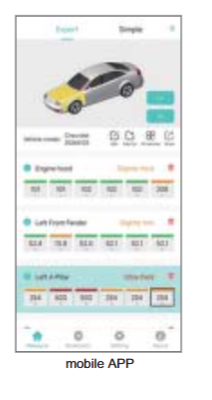

  • Can connect to mobile APP, measure and generate test reports in real time, and save or share the report
  • Double screen, easy reading & normal use at -40°C low temperature
  • Built-in multiple languages
  • Store 9 measuring records
  • Small and portable, easy for operation
  • https://youtu.be/Sv8jVGi8hPY

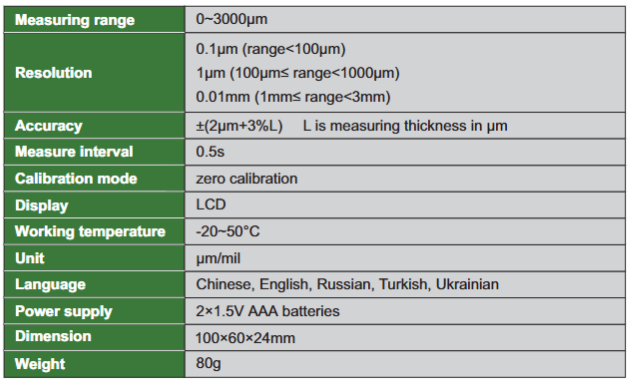

Measuring range 0~3000µm
Resolution 0.1µm (range<100µm)
1µm (100µm≤ range<1000µm)
0.01mm (1mm≤ range<3mm)
Accuracy ±(2µm+3%L)
L is measuring thickness in µm
Measure interval 0.5s
Calibration mode zero calibration
Display front screen LCD, top screen OLED
Working temperature -20~50°C(LCD), -40°C~50°C(OLED)
Unit µm/mil
Language Chinese, English, Russian, Turkish, Ukrainian
Power supply 2×1.5V AAA batteries
Dimension 100×60×24mm
Weight 80g
