Coating Thickness Gage (Basic Type) - ISO-1200FN

Save 25%

Size: ISO-1200FN
Price:
Rs. 18,820 Rs. 25,030

Tax included Shipping calculated at checkout

Description

Features:-

  • probe is suitable for both magnetic and non-magnetic metal substrates
  • Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate
    Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel)
    Coating: Zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
  • Eddy current probe measures the thickness of non-conductive coating on non-magnetic metal substrate
    Substrate: copper, aluminum, zinc, non-magnetic, stainless steel
    Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
  • 3 measuring modes: Fe, NFe, Fe/NFe
  • Store 9 measuring records
  • Small and portable, easy for operation

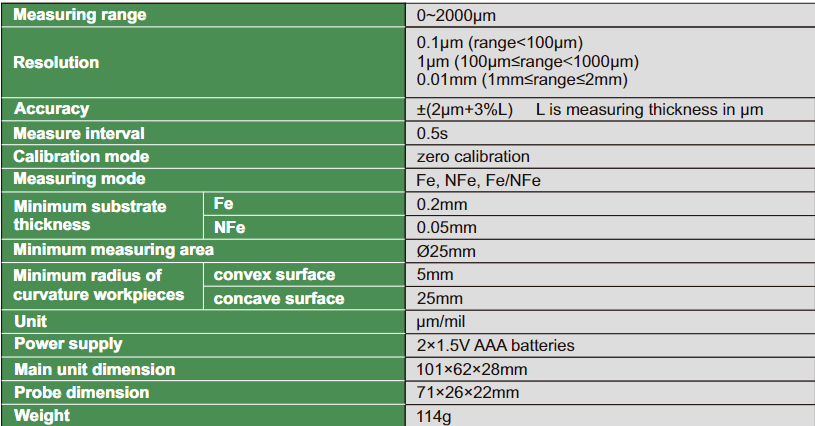

    Code ISO-1200FN
    Measuring range 0-2000μm
    Resolution

    0.1μm (range<100μm) 1μm(100μm<range<1000μm)

    0.01mm (1mm<range<2mm)

    Accuracy (2μm+3%L) l is measuring thickness in μm
    Repeatability 0.5s

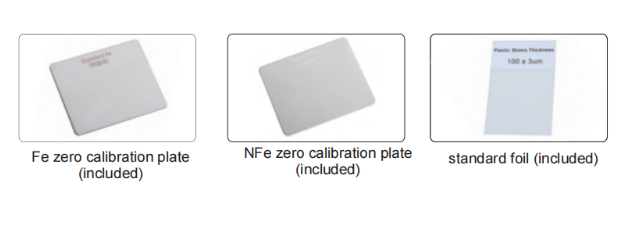

    Calibration mode zero calibration
    Measure interval Fe, NFe, Fe/Nfe
    Minimum substrate thickness Fe 0.2mm
    Nfe 0.05mm
    Minimum measuring area  ⌀25mm
    minimum radius of curvature workpieces Convex suface 5mm
    Concave surface 25mm
    Unit μm/mil
    Power supply 2x1.5V AA batteries
    Main unit dimension 1.1x62x28mm
    Probe Dimension 71x26x22mm
    Weight 114gm
