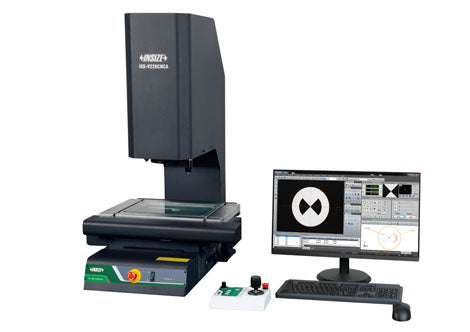

CNC Vision Measuring System - ISD-V220CNCA

Save 25%

Size: ISD-V220CNCA
Price:
Rs. 1,217,585 Rs. 1,619,386

Tax included Shipping calculated at checkout

Description

Features:-

  • Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
  • Servo motors for X, Y, Z axis
  • SPC function for large quantity measurement
  • Supplied with manufacturer inspection certificate

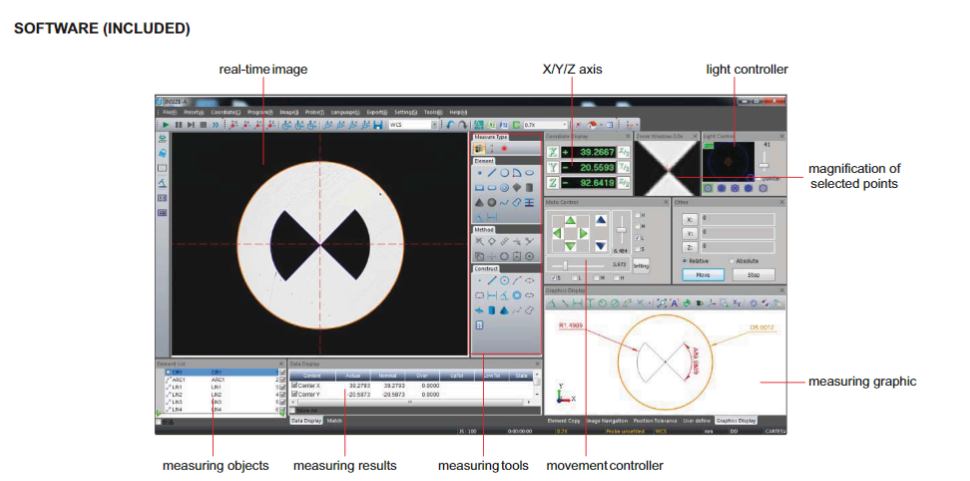

  • Measuring software is included
    Code Manual zoom lens ISD-V220CNCA
    Measuring range (X×Y×Z) 220×120×150mm
    Stage size 450×280mm
    Glass stage size 306×196mm
    Resolution of X/Y/Z axis 0.5μm
    Accuracy of X/Y axis  +(2.5+L/100)μm (L is the measuring length in mm)
    Repeatability of X/Y axis 2
    Objective  0.7X~4.5X (ZOOM)
    Working distance 92mm
    Magnification 33.0X~208.6X (with manual zoom lens, on 24" monitor)
    31.9X~188.7X (with motorized zoom lens, on 24" monitor)
    Camera giga-bit network camera

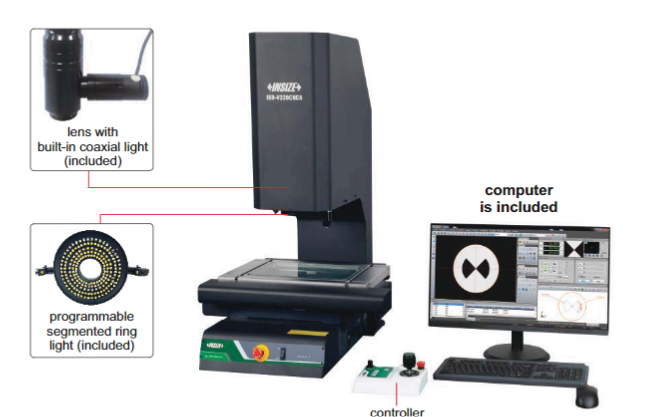

    Illumination Surface color Coaxial light, programmable segmented ring light
    Contour Adjustable light
    View field (diagonal length) 1.5~10.8mm
    Max. height of workpiece 150mm
    Max. weight of workpiece 30kg
    Operation system Windows 7/8/10
    Drive method Automatic
    Power supply 220V, 50/60Hz
    Dimension (L×W×H) 790×600×900mm
    Weight 146kg
