Cast Iron Comparator Stands


Size: LCS-1 (DIA 60MM)
Price:
Rs. 3,850

Tax included Shipping calculated at checkout

Description

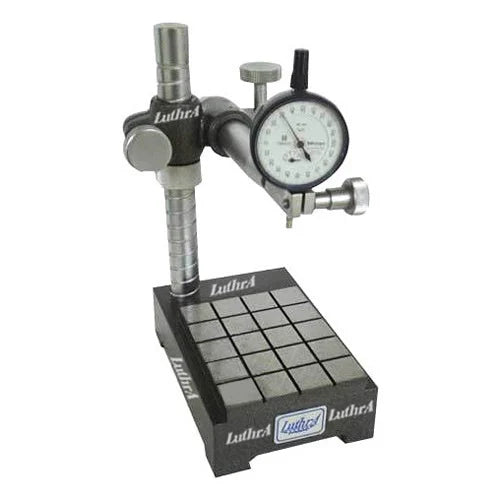

Cast iron comparator stands are made of closed grain graded casting and are hand scrapped to achieve accuracy of grade 1. Rigid and sturdy base. Serrated and Plain anvil face are hardened and ground finish. These have high wear resistance. Adjustable support arm of dial indicator.

 Specification:

Model Anvil Size Anvil type Gauging Bracket Measuring Height
LCS-1 DIA 60mm Hardened Centre 100mm
LCS-2 DIA 60mm Hardened & Serrated Fine Adj. 100mm
LCS-3 70x70mm Hardened Centre 100mm
LCS-4 70x70mm Hardened & Serrated Fine Adj. 100mm
LCS-5 100x125mm Hardened Centre 150mm
LCS-6 100x125mm Hardened Fine Adj. 150mm
LCS-7 100x125mm Hardened & Serrated Fine Adj. 150mm
LCS-8 100x125mm Hardened & Serrated Eccentric 150mm
LCS-9 150x150mm Cast Iron Centre 150mm
LCS-10 150x150mm Cast Iron Fine Adj. 150mm
LCS-11 150x150mm Hardened & Serrated Fine Adj. 150mm
LCS-12 225x150mm Cast Iron Centre 200mm
LCS-13 225x150mm Cast Iron Eccentric 200mm
LCS-14 225x150mm Cast Iron & Serrated Fine Adj. 200mm
LCS-15 225x150mm Hardened Centre 200mm
LCS-16 225x150mm Hardened Fine Adj. 200mm
LCS-17 225x150mm Hardened & Serrated Eccentric 200mm

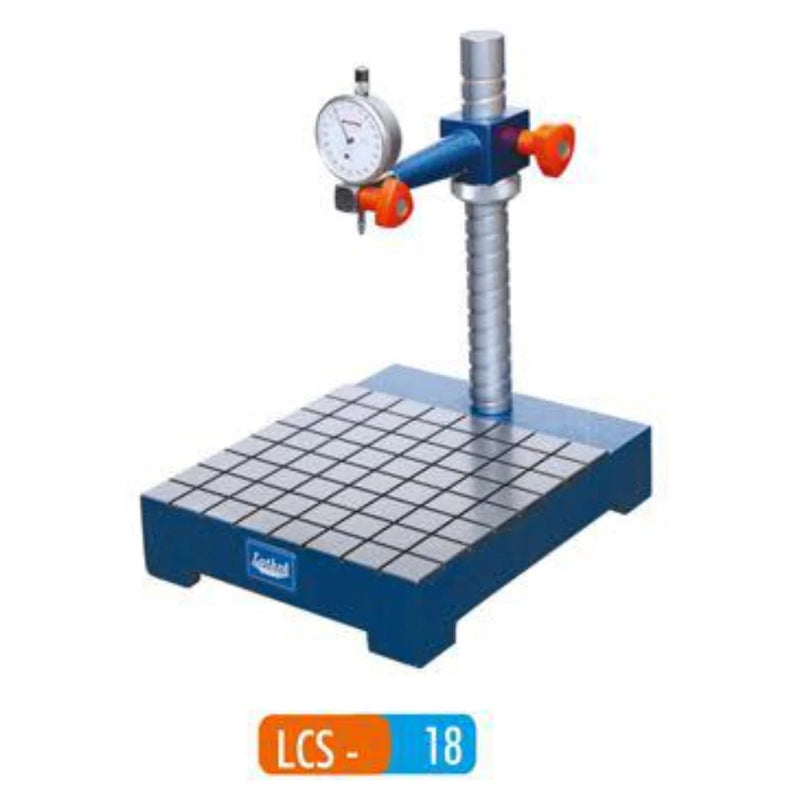

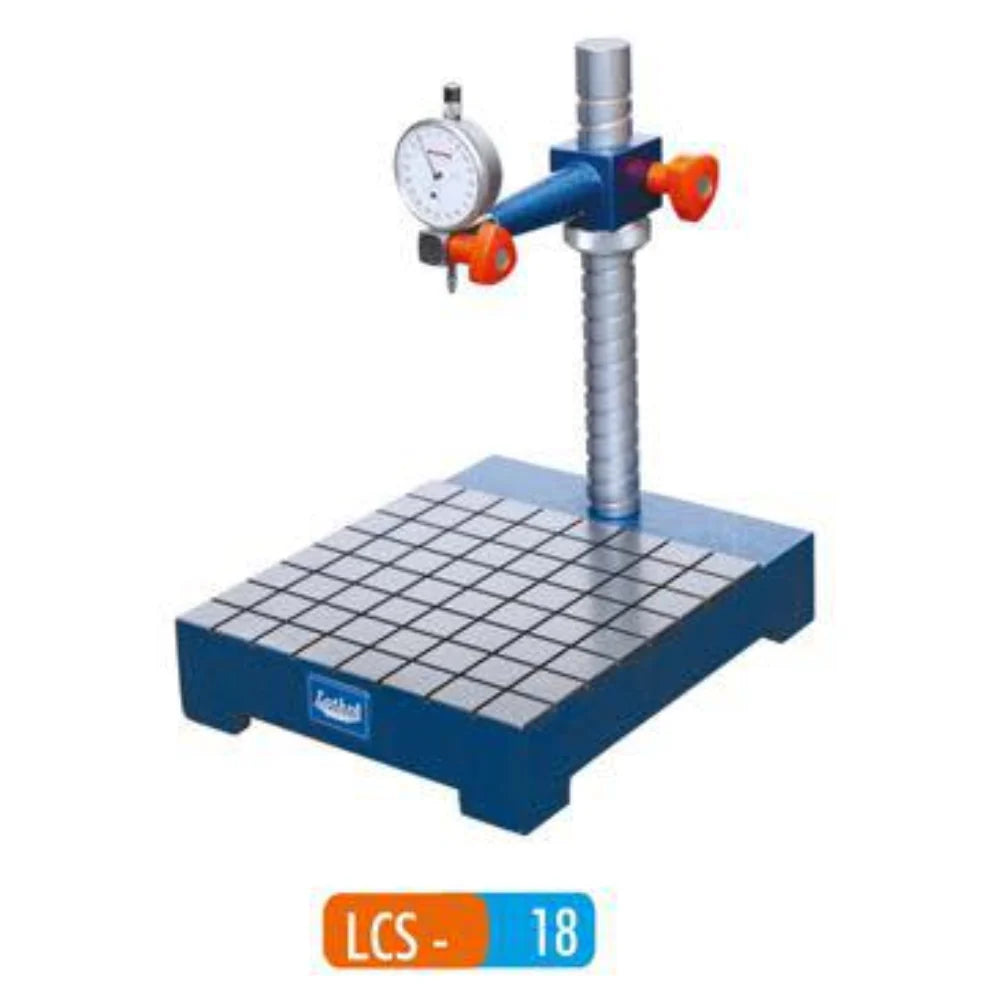

LCS-18 200x200mm Cast Iron & Serrated Centre 200mm
LCS-19 200x200mm Cast Iron Fine Adj. 200mm
LCS-20 200x200mm Cast Iron Eccentric 200mm
LCS-21 200x200mm Hardened Centre 200mm
LCS-22 200x200mm Hardened Eccentric 200mm
LCS-23 200x200mm Hardened & Serrated Fine Adj. 200mm
LCS-24 300x200mm Hardened & Serrated Fine Adj. 250mm
LCS-25 300x200mm Hardened & Serrated Eccentric 250mm
LCS-26 300x250mm Hardened Centre 250mm
LCS-27 300x250mm Hardened & Serrated Eccentric 250mm
LCS-28 300x300mm Cast Iron Centre 250mm
LCS-29 300x300mm Cast Iron Fine Adj. 250mm
LCS-30 300x300mm Cast Iron Eccentric 250mm
LCS-31 300x300mm Cast Iron Double Eccentric 250mm
LCS-32 300x300mm Hardened Fine Adj. 250mm
LCS-33 300x300mm Hardened Eccentric 250mm
