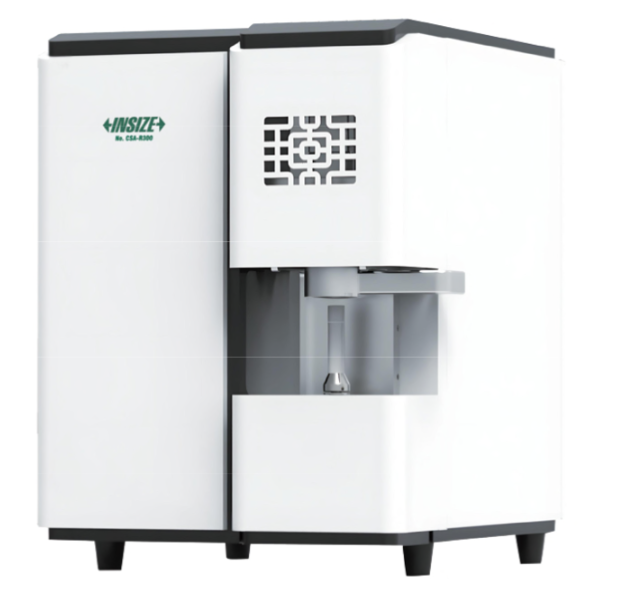

Carbon & Sulfur Analyzer - CSA

Save 25%

Size: CSA-R300
Price:
Rs. 2,251,955 Rs. 2,995,100

Tax included Shipping calculated at checkout

Description

Specification:-

  • Widely used in iron and steel metallurgy, powder metallurgy, magnetic materials, new energy, third-party tasting, research institutes, etc.
  • Analysis of carbon and sulfur in steel, cast iron, alloys, cement, sand, glass, lime, rubber, catalysts, soil, semiconductors, electronic material, metal ores, ceramics and other solid materials
  • Adoption of high-end infrared detection system and the core components of the air circuit system ensures the stability and accuracy of detection
  • The high-frequency heating system adopts special high-frequency capacitors to ensure the long-term reliability of high-frequency work
  • Adopt German imported special external metal dust filter, easy to dismantle, easy to clean
  • Electronic balance for accurate weighing, auto-matic tare of crucible mass, aulo-matic input of sample weight

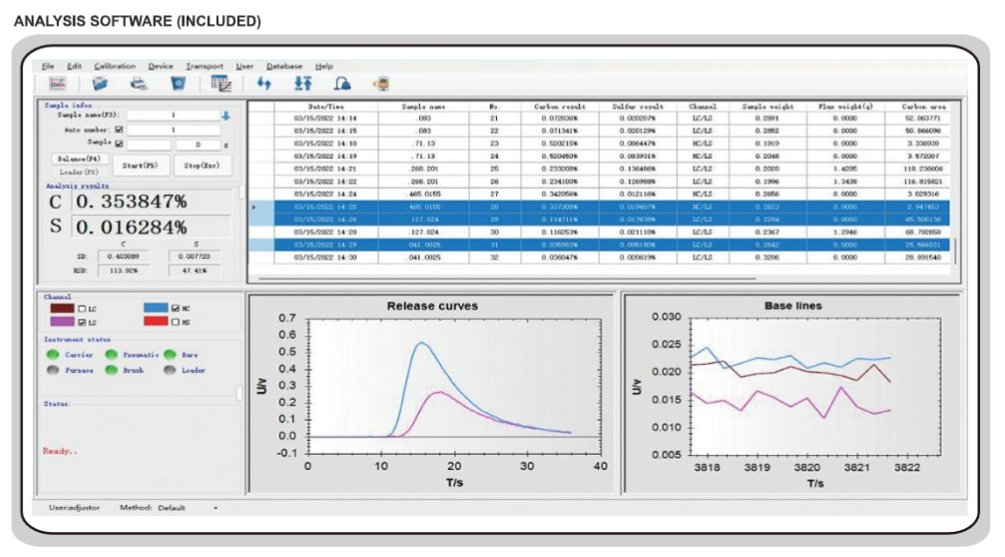

  • The software can monitor solenoid status, signal acquisition status , high frequency status, baseline status, etc.
  • With data management and storage, query and statistics, printing projects, generating reports

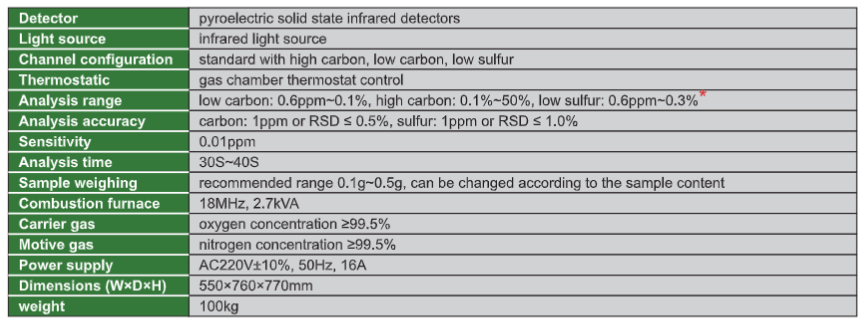

Detector pyroelectric solid state infrared detectors
Light source infrared light source
Channel configuration standard with high carbon, low carbon, low sulfur
Thermostatic gas chamber thermostat control
Analysis range low carbon: 0.6ppm~0.1%, high carbon: 0.1%50%, low sulfur: 0.6ppm0.3%
Analysis accuracy carbon: 1ppm or RSD ≤ 0.5%, sulfur: 1ppm or RSD ≤ 1.0%
Sensitivity 0.01ppm
Analysis time 30S~40S
Sample weighing recommended range 0.1g~0.5g, can be changed according to the sample content
Combustion furnace 18MHz, 2.7kVA
Carrier gas oxygen concentration ≥99.5%
Motive gas nitrogen concentration ≥99.5%
Power supply AC220V±10%, 50Hz, 16A
Dimensions (WxDxH) 550×760×770mm
weight 100kg
