Calibration Foils For Coating Thickness Gauges - 9503

Save 25%

Size : 9503-FL1
Price:
Rs. 759 Rs. 1,009

Tax included Shipping calculated at checkout

Description

Specifications:-

  • To calibrate or check the accuracy of coating thickness gauge
  • Increase the measurement accuracy after foil calibration
  • Uniformity: ±0.3µm (≤50µm), ±0.6% (>50µm)
  • Dimension: 45x30mm (thickness≤2000µm), 50×30mm (thickness>2000µm)
  • Supplied with manufacturer inspection certificate

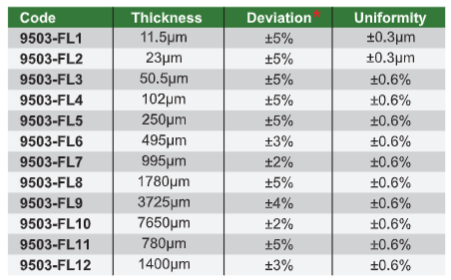

Code Thickness Deviation * Uniformity
9503-FL1 11.5µm ±5% ±0.3μm
9503-FL2 23µm ±5% ±0.3µm
9503-FL3 50.5µm ±5% ±0.6%
9503-FL4 102µm ±5% ±0.6%
9503-FL5 250µm ±5% ±0.6%

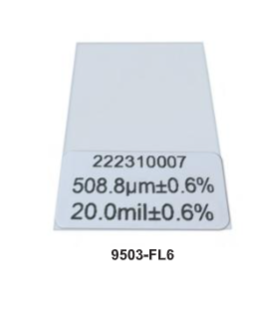

9503-FL6 495µm ±3% ±0.6%
9503-FL7 995µm ±2% ±0.6%
9503-FL8 1780µm ±5% ±0.6%
9503-FL9 3725µm ±4% ±0.6%
9503-FL10 7650µm ±2% ±0.6%
9503-FL11 780µm ±5% ±0.6%
9503-FL12 1400µm ±3% ±0.6%
