GIN Boring Head Sets and Boring Tools - BHC2

Save 20%

MODEL x SPEC: BHC2+BT40 (M)
Price:
Rs. 39,499 Rs. 49,124

Tax included Shipping calculated at checkout

Description

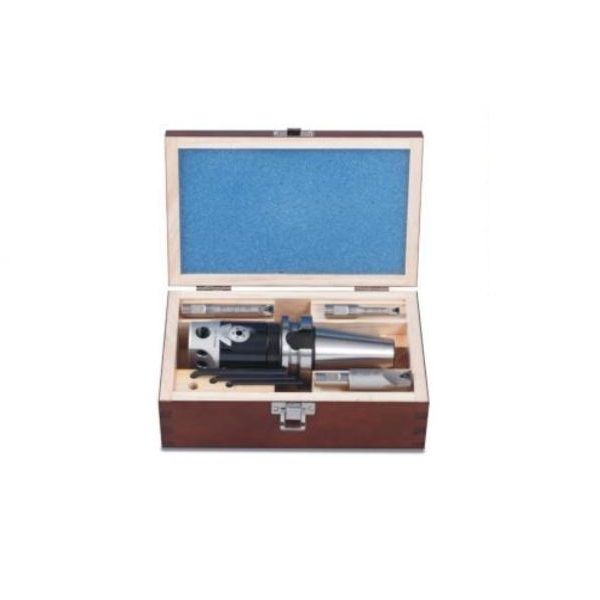

Model GIN-BHC2 (SET) With Three NOS. Indexable Inserts Type Boring Bars.

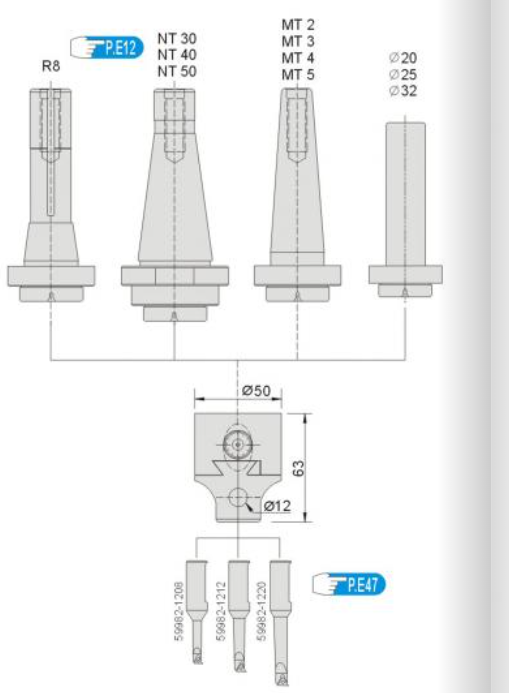

  • Sets available with different Interchangeable Shanks Such as R8, NT30, NT40, NT50, MT2, MT3, MT4, MT5, BT40, & BT50.

Features:-

  • Min. boring range ⌀8mm
  • Max. boring ⌀70mm (optional ⌀150mm)
  • Max. boring depth 50mm
  • Inch/Metric standard available

Standard Accessories:-

  • Shank x 1pc
  • Boring tool x 3pc



SPECIFICATIONS:-

Order No. MODEL Spec. Tool
59200C- 02 BHC2+BT40 M16xP2.0 +BHC12-08/12/20
59200C- 04 BHC2+BT50 M24xP23.0 +BHC12-08/12/20
59200C- 06 BHC2+R8 7/16"x20UNF +BHC12-08/12/20
59200C- 08 BHC2+NT30 1/2"12UNC +BHC12-08/12/20
59200C- 10 BHC2+NT30 M12xP1.75 +BHC12-08/12/20
59200C- 12 BHC2+BT40 5/8''x11UNC +BHC12-08/12/20
59200C- 14 BHC2+BT40 M16xP2.0 +BHC12-08/12/20
59200C- 16 BHC2+BT50 1''x 8UNC +BHC12-08/12/20
59200C- 18 BHC2+BT50 M24xP3.0 +BHC12-08/12/20
59200C- 20 BHC2+MT2 3/8''x16UNC +BHC12-08/12/20
59200C- 22 BHC2+MT2 M10xP1.5 +BHC12-08/12/20
59200C- 24 BHC2+MT3 3/8''x16UNC +BHC12-08/12/20
59200C-26 BHC2+MT3 1/2"13UNC +BHC12-08/12/20
59200C-28 BHC2+MT3 1/2"12UNC +BHC12-08/12/20
59200C-30 BHC2+MT3 M12xP1.75 +BHC12-08/12/20
59200C-32 BHC2+MT4 5/8''x11UNC +BHC12-08/12/20
59200C-34 BHC2+MT4 M16xP2.0 +BHC12-08/12/20
59200C-36 BHC2+MT5 1''8UNC +BHC12-08/12/20
59200C-38 BHC2+MT5 M24xP3.0 +BHC12-08/12/20
59200C-40 BHC2+MT2 TANGED +BHC12-08/12/20
59200C-42 BHC2+MT3 TANGED +BHC12-08/12/20
59200C-44 BHC2+MT4 TANGED +BHC12-08/12/20
59200C-46 BHC2+MT4 TANGED +BHC12-08/12/20



Straight Shank

Order No. MODEL Spec. Tool
59200C-48 BHC2+⌀20 ⌀20x60L +BHC12-08/12/20
59200C-50 BHC2+⌀25 ⌀25x60L +BHC12-08/12/20
59200C-52 BHC2+⌀32 ⌀32x60L +BHC12-08/12/20
Min. Boring Dia. Max. Boring Dia. Max. Boring Depth Boring Bar Hole Size Boring Head Outer Dia. Least Count
8mm 90mm* 45mm 12mm 50 0.001mm



*Larger boring dia upto 150mm can be achieved by optional cross hole boring tool (GIN Model 59982-1236) available separately.
