GIN Boring Head - BHC

Save 11%

MODEL: GIN-BHC2 (MM)
Price:
Rs. 13,899 Rs. 15,624

Tax included Shipping calculated at checkout

Description

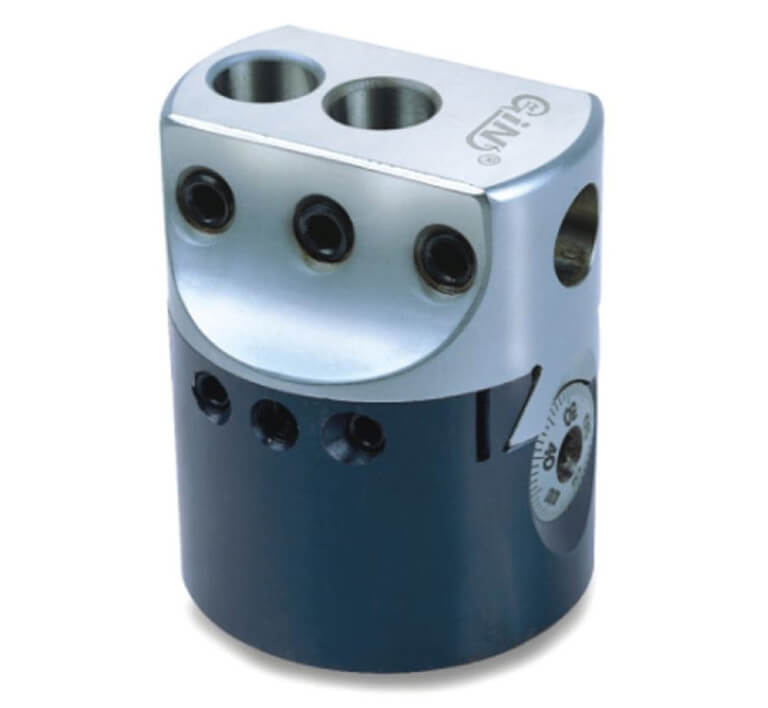

GIN' BHC series boring heads have wide base bearing surface that assures maximum rigidity even when the bar hold is in an offset position. The adjustment screw is ground hardening. Shanks of different types and boring tools available separately.



Features:-

  • Inch/Metric graduation, min. 0.01mm.
  • Only Metric standard is available


SPECIFICATIONS:-

Model Outer Dia Boring Bar Hole Size Cross Distance Between Holes Offset Least Count
GIN-BHC2 50 12 15 15 0.01
GIN-BHC3 75 18 23 25 0.01
GIN-BHC4 100 25 31 25 0.01
