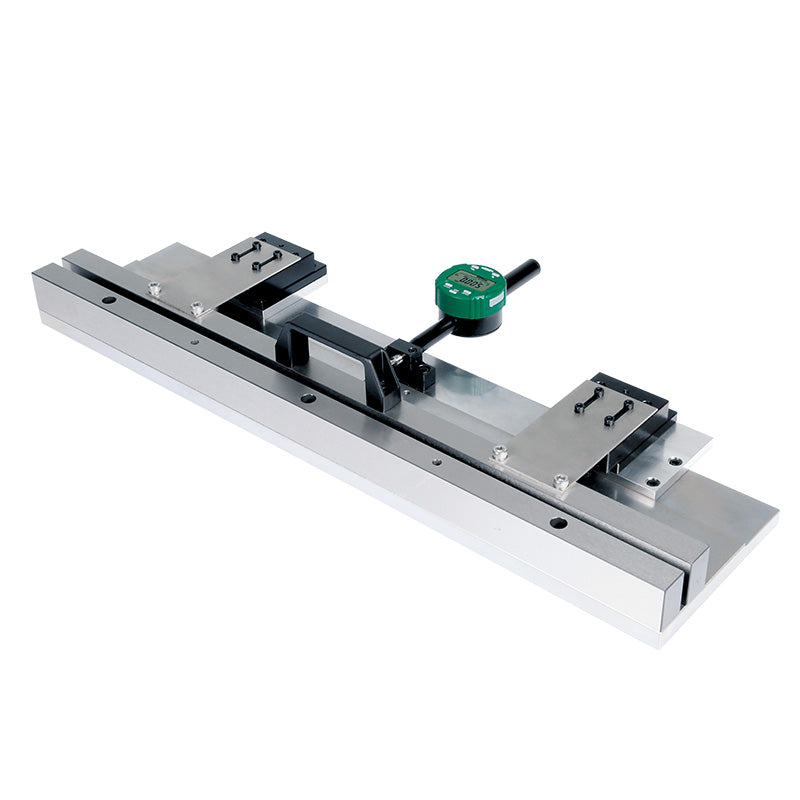

Bolt Straightness Gauges - 2928

Save 25%

Model no.: 2928-300 (0-40mm/1-1.6")
Price:
Rs. 333,429 Rs. 444,569

Tax included Shipping calculated at checkout

Description

Features:-

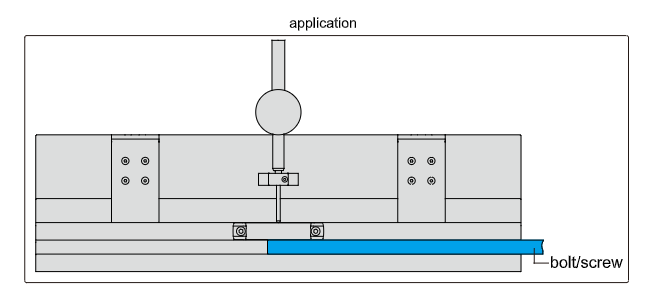

  • Measure the amount of bow or camber in a bolt or screw
  • Resolution: 0.001mm/0.00005"
  • Reading in digital and analog
  • Display can be rotate by 320°
  • Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, data output, absolute/incremental measurement
  • Keep preset data and tolerance data in memory after restart
  • CR2032 battery, automatic power off (time is adjustable)
  • Data output
  • Optional accessory: wireless transmitter code 7315-51 (receiver is needed)

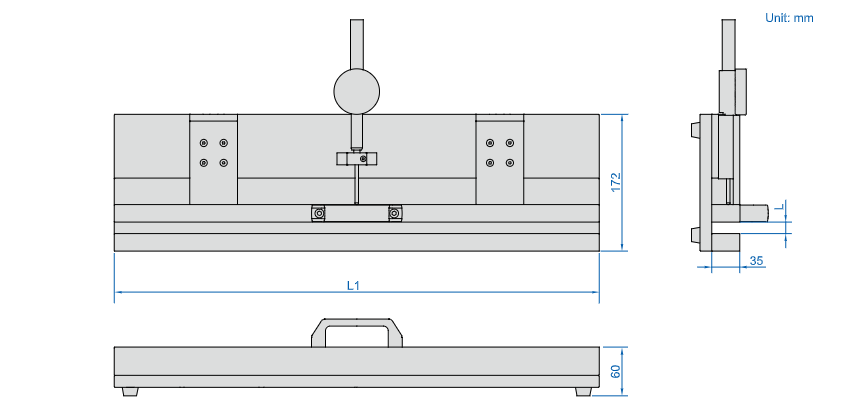

Code

Range (L)

Accuracy

Repeatability

L1

2928-300

0-40mm/0-1.6"

0.03mm

0.01mm

305mm

2928-600

0-40mm/0-1.6"

0.06mm

0.02mm

610mm
