Bench Center - 4744

Save 25%

Model no.: 4744-600 (Fixed stand)
Price:
Rs. 190,185 Rs. 252,949

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Quick positioning, suitable for mass measurement
  • Suitable for cylinders with outside diameter 33-120mm or inside diameter 01-25mm
  • Fixed/universal stand can be optionally installed on request, up to 3
  • Optional accessory dial test indicators (co00 2880-02 2880-02R
  • 2897-02 2380-02C, 2381-02C 2381-021C)
  • Axed stand, universal stand
Code Runout accuracy Center height(H) Distance between two centers(L) Weight Load Remark

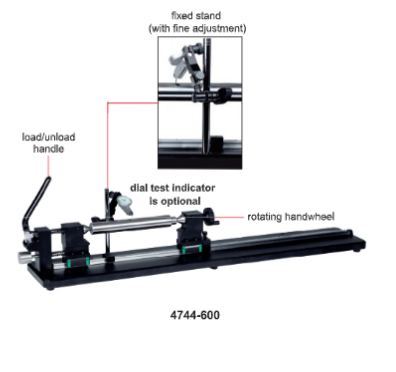

4744-600 3μm 60mm 600mm 10.7kg 6kg fixed stand, good rigidity

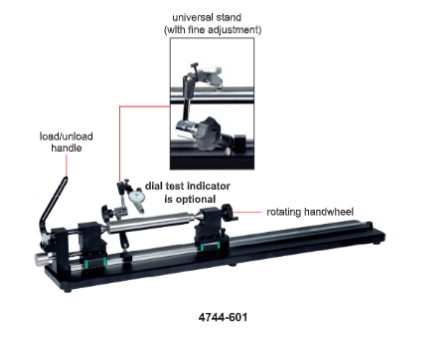

4744-601 3μm 60mm 600mm 10.7kg 6kg universal stand, convenient operation
