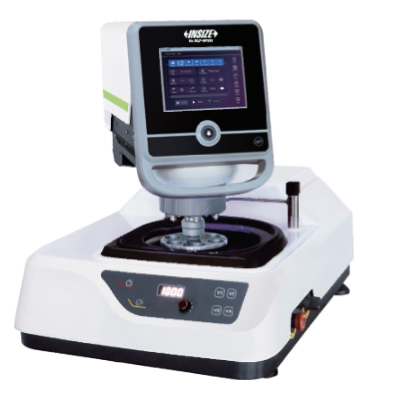

Automatic Grinder & Polisher (Advance Type) - MLP-GP

Save 25%

Model no.: MLP-GP505
Price:
Rs. 1,164,240 Rs. 1,548,439

Tax included Shipping calculated at checkout

Description

Features:-

  • ABS shell and stainless steel parts, anti-corrosion, easy to clean
  • Can hold up to 6 samples (4 holes are optional)
  • Smooth rotation, low noise
  • Adjustable speed
  • Intuitive pressure and time setting, 256 sets of grinding and polishing programs can be stored
  • Water cooling device and abrasive cleaning nozzle prevent samples from
  • overheating and destroying structure
  • Replaceable platen, platen rotation direction can be selected
  • Centre loading and single point loading. automatic abrasive distribution

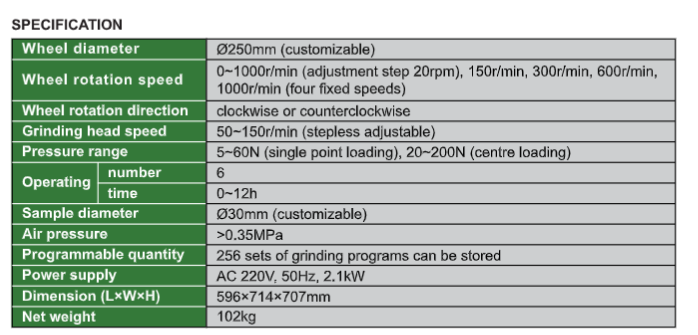

Wheel diameter Ø250mm (customizable)
Wheel rotation speed 0~1000r/min (adjustment step 20rpm), 150r/min, 300r/min, 600r/min, 1000r/min (four fixed speeds)
Wheel rotation direction clockwise or counterclockwise
Grinding head speed 50~150r/min (stepless adjustable)
Pressure range 5~60N (single point loading), 20~200N (centre loading)
Operating number 6
Operating time 0~12h
Sample diameter Ø30mm (customizable)
Air pressure >0.35MPa
Programmable quantity 256 sets of grinding programs can be stored
Power supply AC 220V, 50Hz, 2.1kW
Dimension (L×W×H) 596×714×707mm
Net weight 102kg
