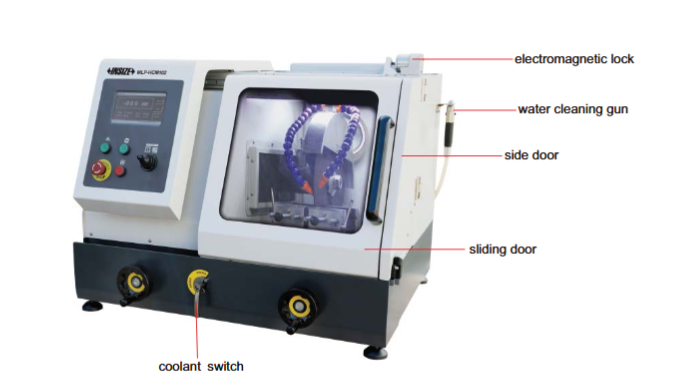

Automatic Cutting Machine (Advance Type) MLP-HCM102

Save 25%

Model no.: MLP-HCM102
Price:
Rs. 614,650 Rs. 817,485

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for cylinder workpieces (diameter≤100mm) and rectangular samples (height≤70mm, width≤100mm)
  • Cooling system avoids overheating and destroying sample structure
  • Three cutting modes(manual, pulse, continuous cutting), the cutting feed speed and cutting stroke can be programmed
  • MATERIAL AGAINST ORDER

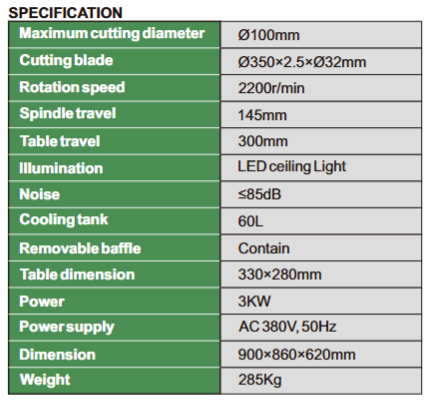

Maximum cutting diameter Ø100mm

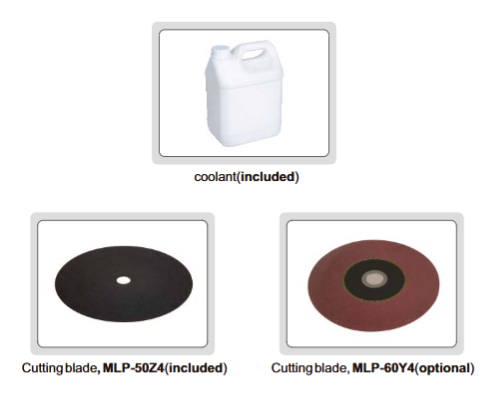

Cutting blade Ø350×2.5ר32mm
Rotation speed 2200r/min
Spindle travel 145mm
Table travel 300mm
Illumination LED ceiling Light
Noise ≤85dB
Cooling tank 60L
Removable baffle Contain
Table dimension 330×280mm
Power 3KW
Power supply AC 380V, 50Hz
Dimension 900×860×620mm
Weight 285Kg
