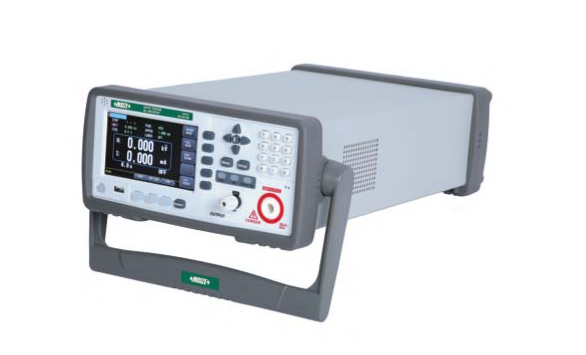

AC/DC Withstanding Voltage Insulation Tester - 9453

Save 25%

Size: 9453-ST01
Price:
Rs. 117,345 Rs. 156,065

Tax included Shipping calculated at checkout

Description

Specifications:-

  • 5-inch LCD touch screen display
  • Arc detection function
  • Electric shock protection function
  • 10 test files can be stored, each file can be edited with 16 test steps.
  • Standard communication interface to meet automation test requirements
  • Applications home appliance, transformer, electrical device, component.

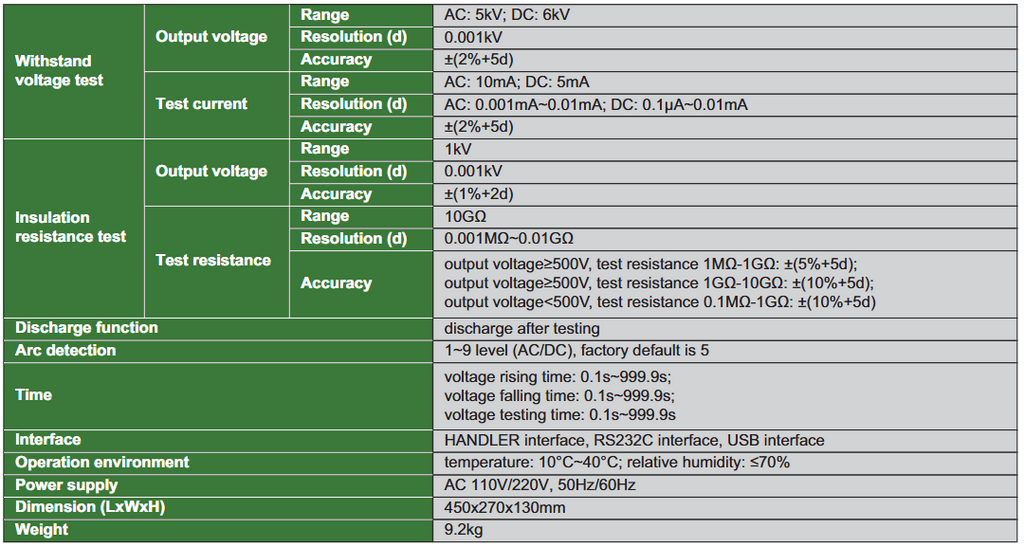

Output voltage Range AC: 5kV; DC: 6kV
Resolution (d) 0.001kV
Accuracy ±(2%+5d)
Test current Range AC: 10mA; DC: 5mA
Resolution (d) AC: 0.001mA~0.01mA; DC: 0.1μΑ~0.01mA
Accuracy ±(2%+5d)
Output voltage Range 1kV
Resolution (d) 0.001kV
Accuracy ±(1%+2d)
Test resistance Range 10GΩ
Resolution (d) 0.001ΜΩ~0.01GΩ
Accuracy output voltage≥500V test resistance 1ΜΩ-1GΩ: ±(5%+5d);  output voltage≥500V test resistance 1GQ-10GΩ: ±(10%+5d);  output voltage<500V test resistance 0.1ΜΩ-1GΩ: ±(10%+5d)
Discharge function discharge after testing
Arc detection 1~9 level (AC/DC) factory default is 5
Time voltage rising time: 0.1s~999.9s;  voltage falling time: 0.1s~999.9s;  voltage testing time: 0.1s~999.9s
Interface HANDLER interface RS232C interface USB interface
Operation environment temperature: 10°C~40°C relative humidity: ≤70%
Power supply AC 110V/220V 50Hz/60Hz
Dimension (LxWxH) 450x270x130mm
Weight 9.2kg
