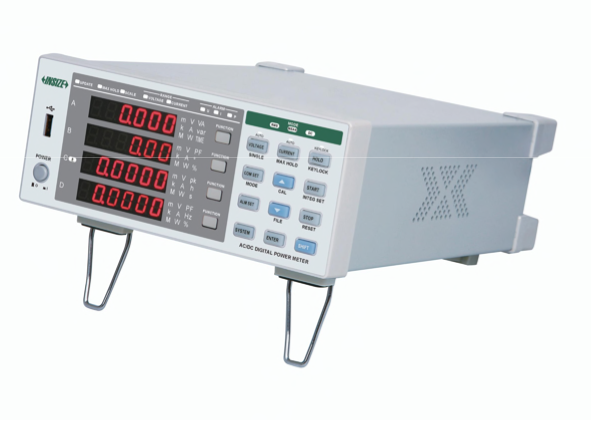

AC/DC Digital Power Meter - 9670

Save 25%

Size: 9670-PM70
Price:
Rs. 69,415 Rs. 92,319

Tax included Shipping calculated at checkout

Description

Specification:-

  • Basic accuracy: 0.2%
  • AC/DC universal, input signal bandwidth: DC, 15Hz-5kHz
  • High measurement speed, up to 0.1s refresh rate
  • Voltage and current ratio function
  • Sound and light alarm for voltage, current, power over the limits
  • Standard RS232 interface to support test automation and data transmission

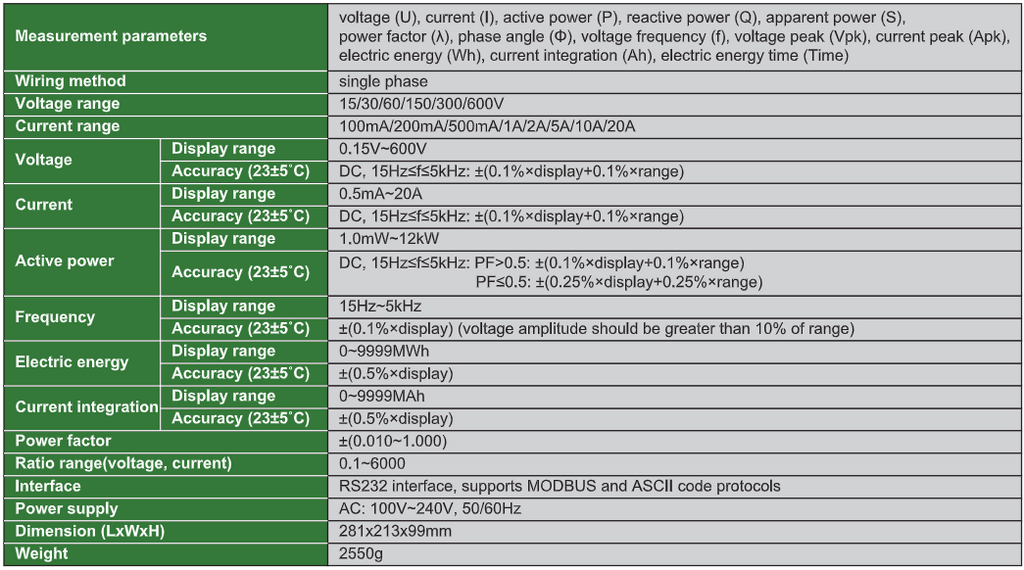

Measurement parameters voltage (U) current (I) active power (P) reactive power (Q) apparent power (S) power factor (λ) phase angle (Φ) voltage frequency (f) voltage peak (Vpk) current peak (Apk) electric energy (Wh) current integration (Ah) electric energy time (Time)
Wiring method single phase
Voltage range 15/30/60/150/300/600V
Current range 100mA/200mA/500mA/1A/2A/5A/10A/20A
Voltage Display range 0.15V~600V
Accuracy (23±5°C) DC 15Hz≤f≤5kHz ±(0.1%×display+0.1%×range)
Current Display range 0.5mA~20A
Accuracy (23±5°C) DC 15Hz≤f≤5kHz ±(0.1%×display+0.1%×range)
Active power Display range 1.0mW~12kW
Accuracy (23±5°C) DC 15Hz≤f≤5kHz PF>0.5 ±(0.1%×display+0.1%×range)  PF≤0.5 ±(0.25%×display+0.25%×range)
Frequency Display range 15Hz~5kHz
Accuracy (23±5°C) ±(0.1%×display) (voltage amplitude should be greater than 10% of range)
Electric energy Display range 0~9999MWh
Accuracy (23±5°C) ±(0.5%×display)
Current integration Display range 0~9999MAh
Accuracy (23±5°C) ±(0.5%×display)
Power factor ±(0.010~1.000)
Ratio range(voltage current) 0.1~6000
Interface RS232 interface supports MODBUS and ASCII code protocols
Power supply AC 100V~240V 50/60Hz
Dimension (LxWxH) 281x213x99mm
Weight 2550g
