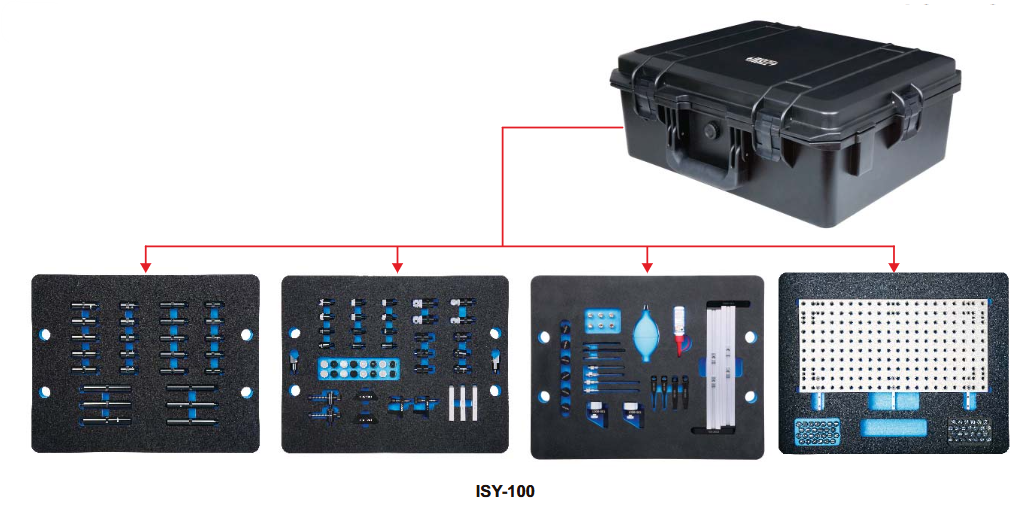

158 Piece Jig Set For CMM - ISY-100

Save 25%

Size: ISY-100
Price:
Rs. 173,719 Rs. 231,629

Tax included Shipping calculated at checkout

Description

Specifications:-

https://youtu.be/XomQmUHswDE

Product Code Size (mm) Quantity

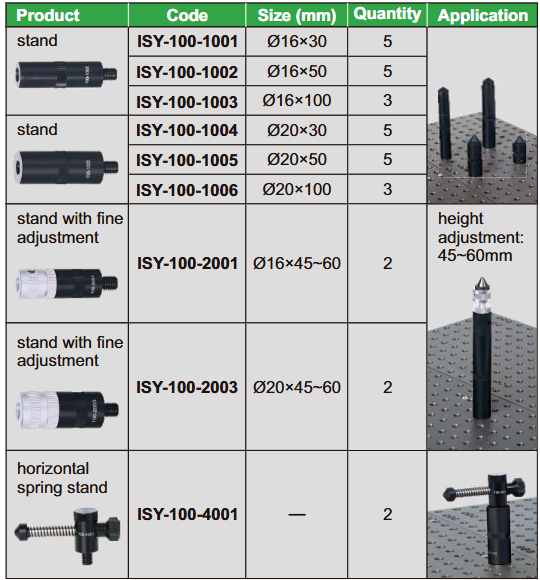

stand ISY-100-1001 Ø16×30 5
stand ISY-100-1002 Ø16×50 5
stand ISY-100-1003 Ø16×100 3
stand ISY-100-1004 Ø20×30 5
stand ISY-100-1005 Ø20×50 5
stand ISY-100-1006 Ø20×100 3
stand with fine adjustment ISY-100-2001 Ø16×45~60 2
stand with fine adjustment ISY-100-2003 Ø20×45~60 2
horizontal spring stand ISY-100-4001 – 2

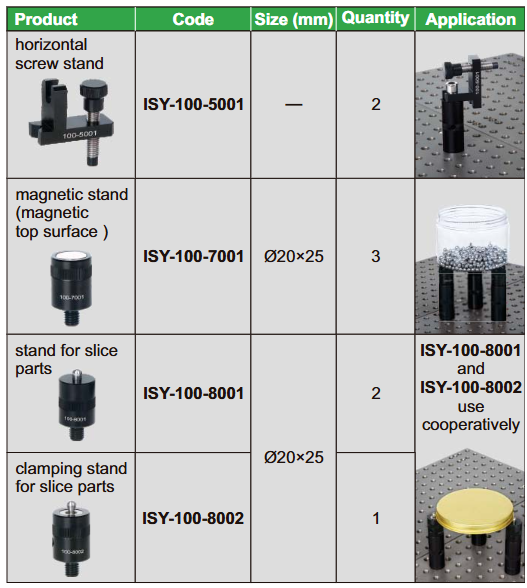

horizontal screw stand ISY-100-5001 – 2
magnetic stand (magnetic top surface) ISY-100-7001 Ø20×25 3
stand for slice parts ISY-100-8001 Ø20×25 2
clamping stand for slice parts ISY-100-8002 Ø20×25 1

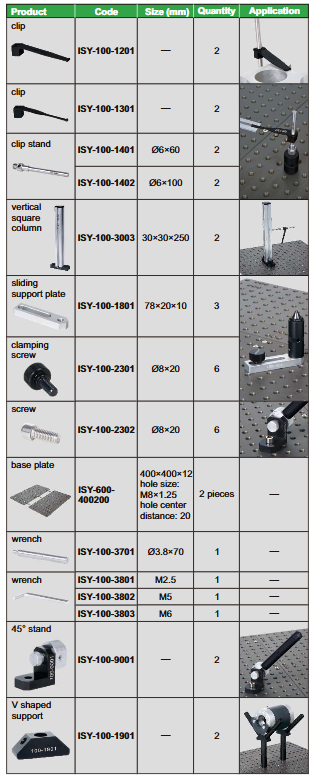

clip ISY-100-1201 – 2
clip ISY-100-1301 – 2
clip stand ISY-100-1401 Ø6×60 2
clip stand ISY-100-1402 Ø6×100 2
vertical square column ISY-100-3003 30×30×250 2
sliding support plate ISY-100-1801 78×20×10 3
clamping screw ISY-100-2301 Ø8×20 6
screw ISY-100-2302 Ø8×20 6
base plate ISY-600-400200 400×400×12 hole size: M8×1.25 hole center distance: 20 2 pieces
wrench ISY-100-3701 Ø3.8×70 1
wrench ISY-100-3801 M2.5 1
wrench ISY-100-3802 M5 1
wrench ISY-100-3803 M6 1
45° stand ISY-100-9001 – 2
V shaped support ISY-100-1901 – 2

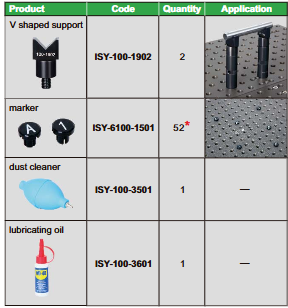

V shaped support ISY-100-1902 – 2
marker ISY-6100-1501 – 52*
dust cleaner ISY-100-3501 – 1
lubricating oil ISY-100-3601 – 1

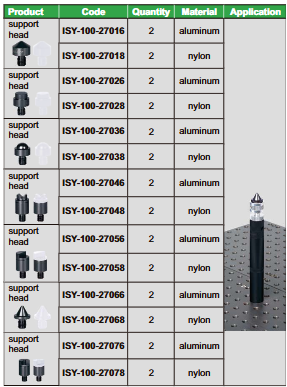

support head (aluminum) ISY-100-27016 – 2
support head (nylon) ISY-100-27018 – 2
support head (aluminum) ISY-100-27026 – 2
support head (nylon) ISY-100-27028 – 2
support head (aluminum) ISY-100-27036 – 2
support head (nylon) ISY-100-27038 – 2
support head (aluminum) ISY-100-27046 – 2
support head (nylon) ISY-100-27048 – 2
support head (aluminum) ISY-100-27056 – 2
support head (nylon) ISY-100-27058 – 2
support head (aluminum) ISY-100-27066 – 2
support head (nylon) ISY-100-27068 – 2
support head (aluminum) ISY-100-27076 – 2
support head (nylon) ISY-100-27078 – 2

ISY-100-8001 and ISY-100-8002 are used cooperatively.
