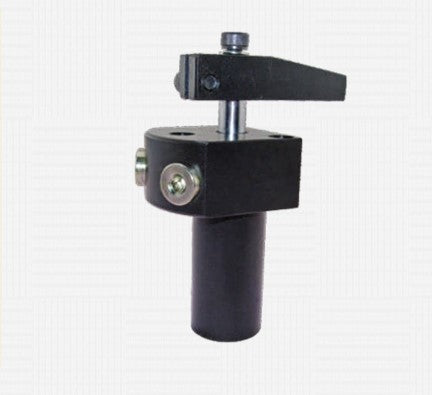

050 Series RIGHT : Hydraulic High Oil Pressure , Upper Flange Version Swing Clamp, Double Acting, Inlet oil Pressure 35-350 Kg/cm2

Save 27%

Variant: 050-92-R
Right: Right
Price:
Rs. 40,199 Rs. 55,073

Tax included Shipping calculated at checkout

Description

Features :

  • The flexible design allows for manifold or threaded port connection in one cylinder body.
  • Material:  Medium Carbon Steel body
  • Swivel Angle: 90° +
  • RIGHT

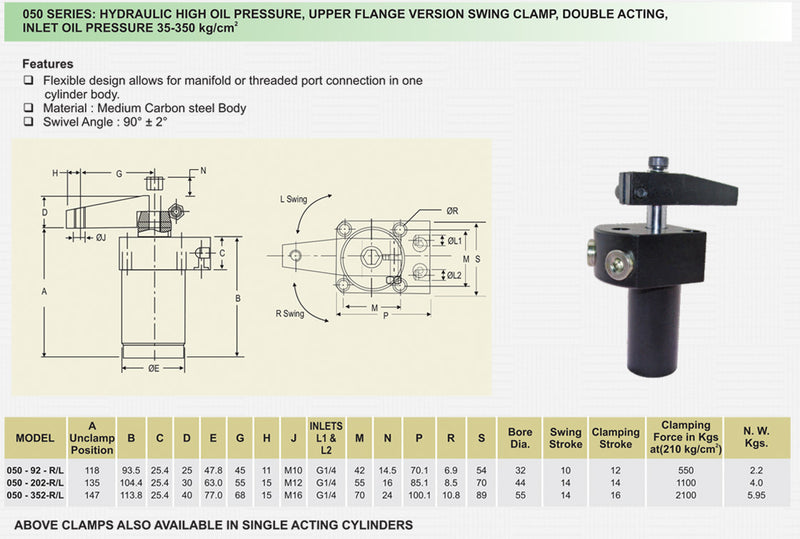

Model 050 - 92 - R/L 050 - 202 - R/L 050 - 352 - R/L
A Unclamp Position 118 135 147
B 93.5 104.4 113.8
C 25.4 25.4 25.4
D 25 30 40
E 47.8 63 77
G 45 55 68
H 11 15 15
J M10 M12 M16
Inlets L1 & L2 G1/4 G1/4 G1/4
M 42 55 70
N 14.5 16 24
P 70.1 85.1 100.1
R 6.9 8.5 10.8
S 54 70 89
Bore Dia 32 44 55
Swing Stroke 10 14 14
Clamping Stroke 12 14 16
Clamping Force in kgs 210 kg/cm2
550 1100 2100
N.W Kgs 2.2 4 5.95



Above clamps are also available in single-acting cylinders.
