Wireless Data Transmission Systems - 7315

Save 25%

Size: 7315-25(Digital caliper)
Price:
Rs. 4,745 Rs. 6,310

Tax included Shipping calculated at checkout

Description

Specifications:-

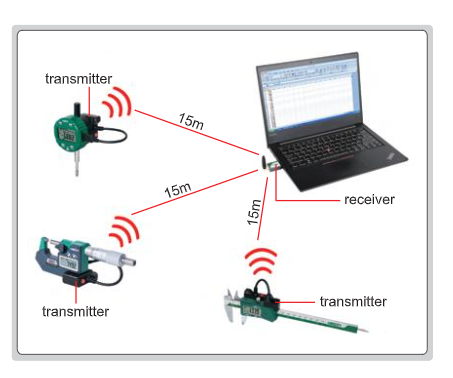

  • Through wireless transmission, the readings of measuring tools can be transmitted to computers or mobile phones
  • Conform to IEEE802 wireless standard 2.4GHz band communication frequency
  • Transmission distance is 15 meter (under the condition of no obstruction and no electromagnetic interference)

Transmitter :-

  • Connecting to digital measuring tools such as calipers, micrometer & indicators
  • CR2032 battery
Code Description Transmit data

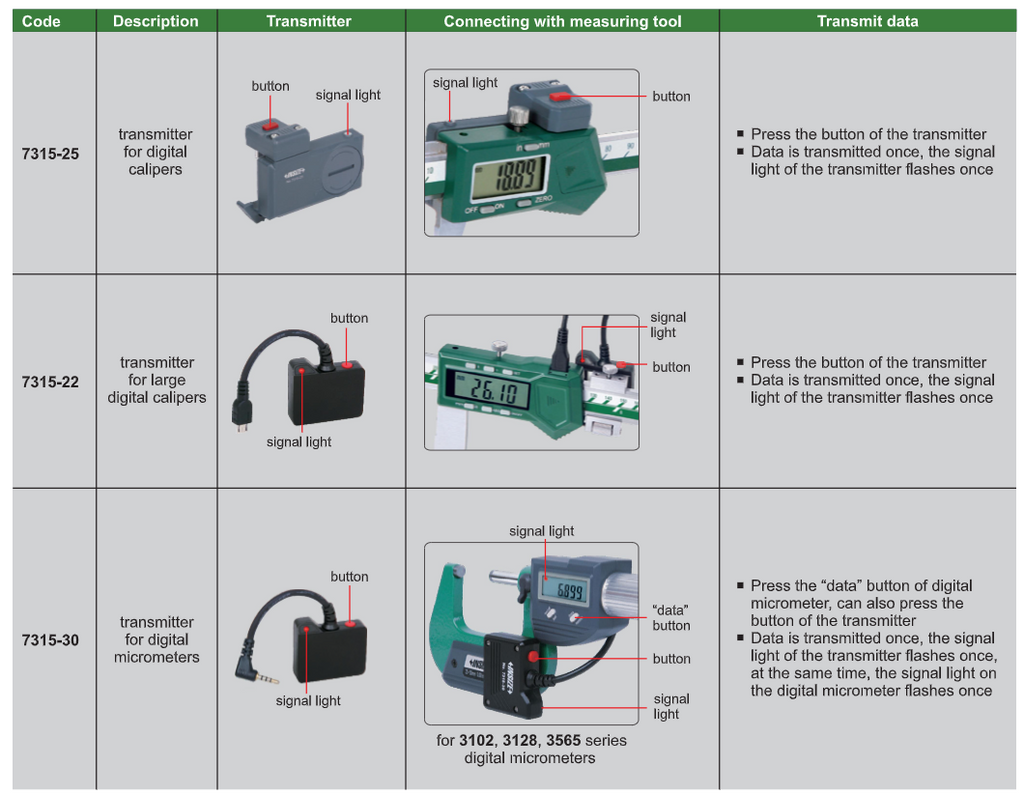

7315-25 transmitter for digital calipers - Press the button of the transmitter
- Data is transmitted once, the signal light of the transmitter flashes once
7315-22 transmitter for large digital calipers - Press the button of the transmitter
- Data is transmitted once, the signal light of the transmitter flashes once
7315-30 transmitter for digital micrometers - Press the "data" button of digital micrometer, can also press the button of the transmitter
- Data is transmitted once, the signal light of the transmitter flashes once, at the same time, the signal light on the digital micrometer flashes once

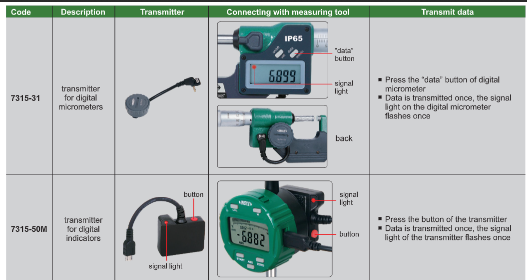

7315-31 transmitter for digital micrometers - Press the "data" button of digital micrometer
- Data is transmitted once, the signal light on the digital micrometer flashes once
7315-50M transmitter for digital indicators - Press the button of the transmitter
- Data is transmitted once, the signal light of the transmitter flashes once

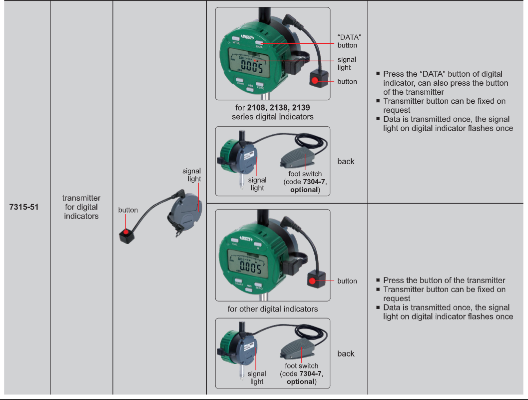

7315-51 for 2108, 2138, 2139 series digital indicators -Press the "DATA" button of digital Indicator, can also press the button of the transmitter Transmitter button can be fixed on request
-Data is transmitted once, the signal light on digital indicator flashes once
for other digital indicators button -Press the button of the transmitter Transmitter button can be fixed on request
-Data is transmitted once, the signal light on digital indicator flashes once

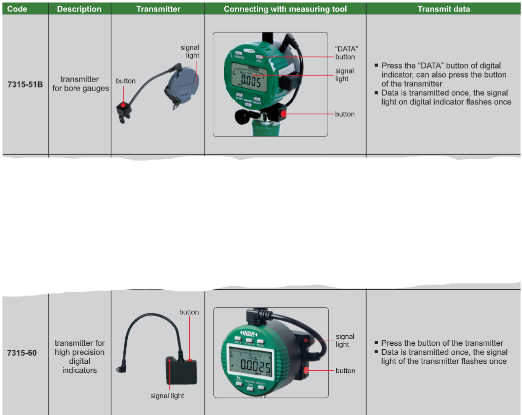

7315-51B transmitter for bore gauges - Press the "DATA" button of digital indicator, can also press the button of the transmitter
- Data is transmitted once, the signal light on digital indicator flashes once
7315-60 transmitter for high precision digital indicators - Press the button of the transmitter
- Data is transmitted once, the signal light of the transmitter flashes once

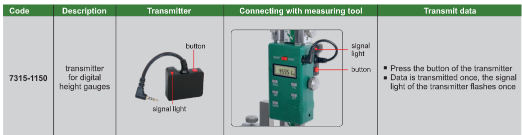

7315-1150 transmitter for digital height gauges * Press the button of the transmitter
* Data is transmitted once, the signal light of the transmitter flashes once
7315-8301 transmitter for electronic balances Press the "" button of the electronic balances, can also press the button of the transmitter
- Data is transmitted once, the signal light of the transmitter flashes once
