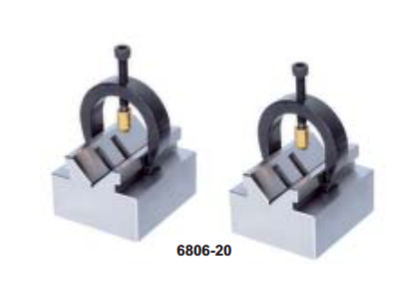

V Block Set -6806

Save 25%

Model no.: 6806-20
Price:
Rs. 14,085 Rs. 18,729

Tax included Shipping calculated at checkout

Description

Features:-

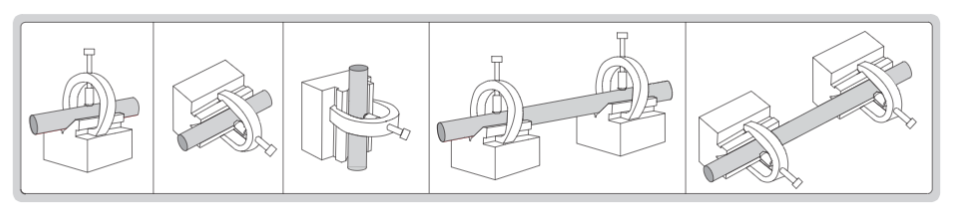

  • Hold cylindrical workpieces for inspection and machining
  • Two V-blocks per set
  • Made of alloy steel
  • Hardened to HRC60±2
  • Applicable for cylinder with diameter (Ød): 2-20mm

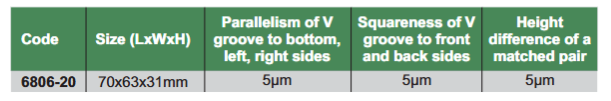

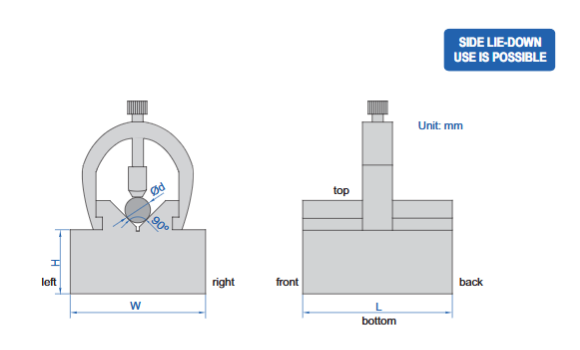

Code Size (LxWxH) Parallelism of V groove to bottom, left, right sides Squareness of V groove to front and back sides Height difference of a matched pair
6806-20 70x63x31mm 5μm 5μm 5μm
