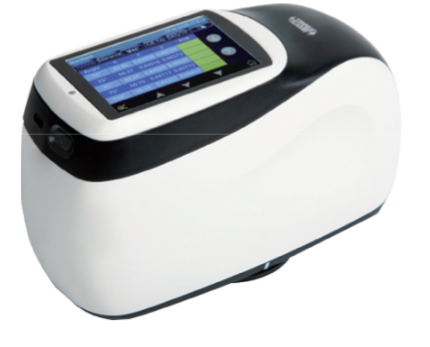

Multi-angle Spectrophotometer - 5705

Save 25%

Size: 5705-MS45
Price:
Rs. 746,720 Rs. 995,135

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Adopt 5 illumination sources, 1 receiver to measure 5 measurement angles at the same time

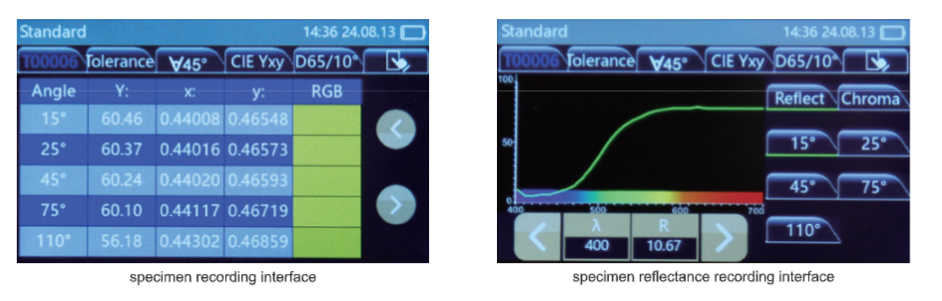

  • Touch screen can display all angle measurement results, more intuitive view of the comprehensive data
  • Full spectrum illumination measurement is more professional to avoid spectrum loss
  • Provide 6 color spaces, multiple observation light sources
  • Using concave grating spectrophotometric technology, with higher resolution, makes color measurement more accurate
  • Built-in color camera positioning, can accurately judge the object measured position, and improve the Measurement efficiency and accuracy
  • Multiple functions, the screen can display various data intuitively
  • Concave grating spectrophotometer
  • Bluetooth & Data output.

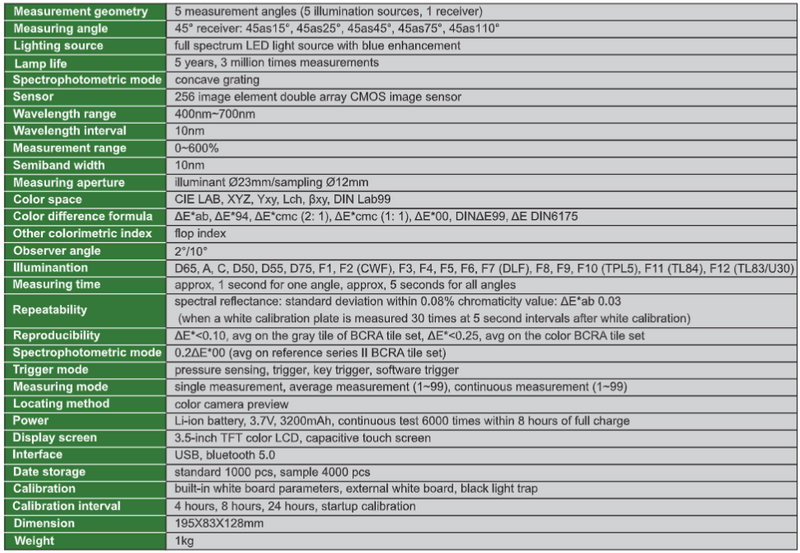

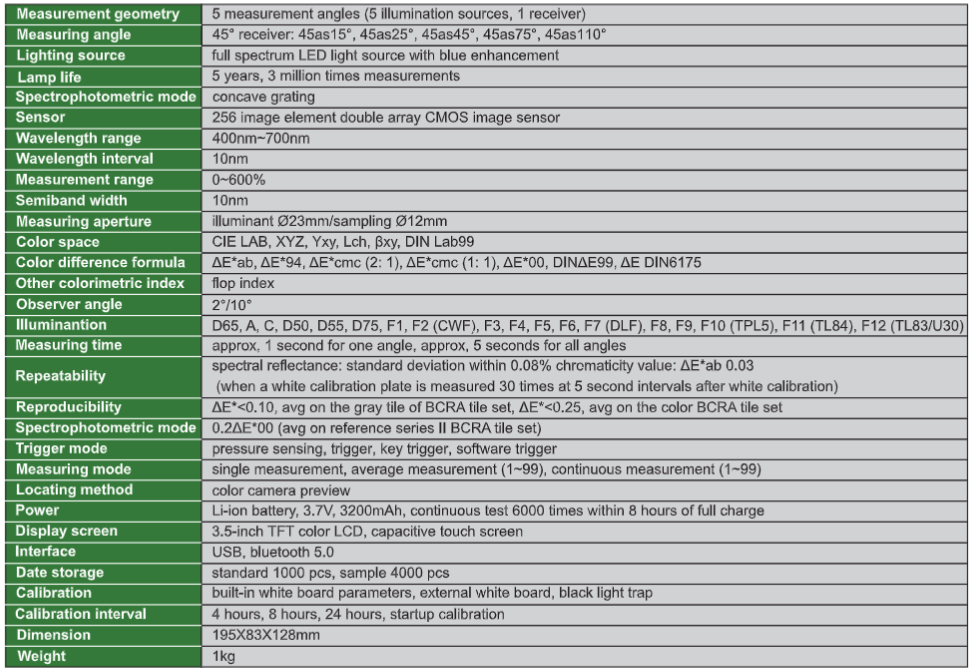

Measurement geometry 5 measurement angles (5 illumination sources 1 receiver)
Measuring angle 45° receiver: 45as15° 45as25° 45as45° 45as75° 45as110°
Lighting source full spectrum LED light source with blue enhancement
Lamp life 5 years 3 million times measurements
Spectrophotometric mode concave grating
Sensor 256 image element double array CMOS image sensor
Wavelength range 400nm~700nm
Wavelength interval 10nm
Measurement range 0~600%
Semiband width 10nm
Measuring aperture illuminant Ø23mm/sampling Ø12mm
Color space CIE LAB XYZ Yxy Lch ẞxy DIN Lab99
Color difference formula ΔΕ*ab ΔΕ*94 ΔΕ*cmc (2: 1) ΔΕ*cmc (1: 1) ΔΕ*00 DINΔΕ99 ΔΕ DIN6175
Other colorimetric index flop index
Observer angle 2°/10°
Illuminantion D65 A C D50 D55 D75 F1 F2 (CWF) F3 F4 F5 F6 F7 (DLF) F8 F9 F10 (TPL5) F11 (TL84) F12 (TL83/U30)
Measuring time approx 1 second for one angle approx 5 seconds for all angles
Repeatability spectral reflectance: standard deviation within 0.08% chromaticity value: ΔΕ*ab 0.03
(when a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility ΔΕ*<0.10 avg on the gray tile of BCRA tile set ΔΕ*<0.25 avg on the color BCRA tile set
Spectrophotometric mode 0.2ΔΕ*00 (avg on reference series II BCRA tile set)
Trigger mode pressure sensing trigger key trigger software trigger
Measuring mode single measurement average measurement (1~99) continuous measurement (1~99)
Locating method color camera preview
Power Li-ion battery 3.7V 3200mAh continuous test 6000 times within 8 hours of full charge
Display screen 3.5-inch TFT color LCD capacitive touch screen
Interface USB bluetooth 5.0
Date storage standard 1000 pcs sample 4000 pcs

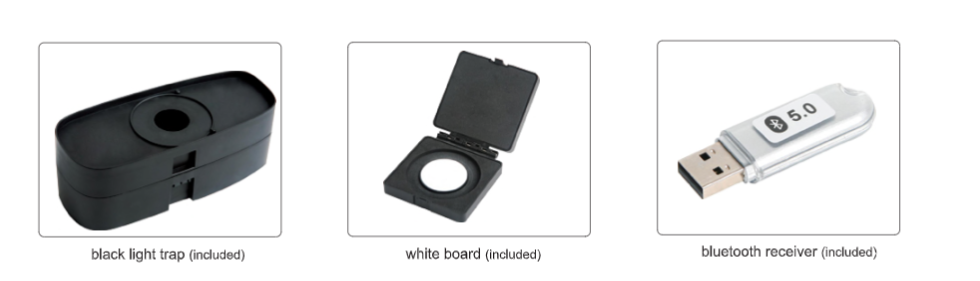

Calibration built-in white board parameters external white board black light trap
Calibration interval 4 hours 8 hours 24 hours startup calibration
Dimension 195X83X128mm
Weight 1kg
