Metallurgical Microscope - 5113-M850

Save 25%

Size: 5113-M850
Price:
Rs. 241,175 Rs. 320,760

Tax included Shipping calculated at checkout

Description

Features:-

  • ECGO infinity two-way chromatic aberration calibration system
  • Built-in white LED, high color rendering index, long life time
  • The same dimmer knob controls the free switching of reflected and transmitted light
  • With anti-slip adjustable elastic and randomized upper limit device
  • MATERIAL AGAINST ORDER

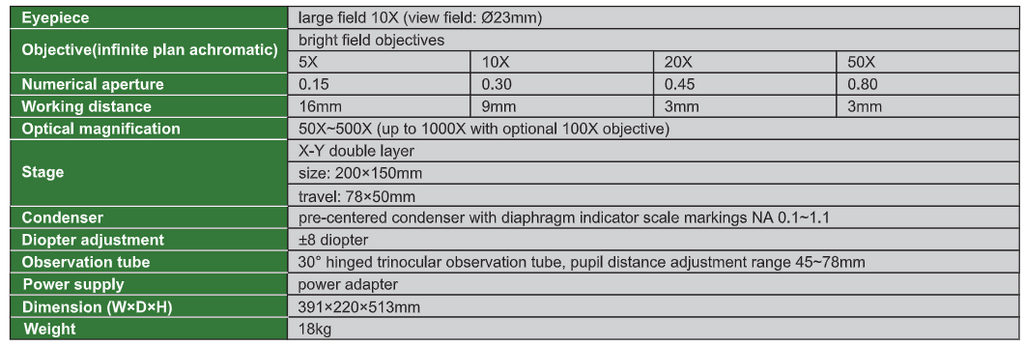

Eyepiece large field 10X (view field: Ø23mm)
Objective(infinite plan achromatic) bright field objectives
5X 10X 20X 50X
Numerical aperture 0.15 0.3 0.45 0.8
Working distance 16mm 9mm 3mm 3mm
Optical magnification 50X~500X (up to 1000X with optional 100X objective)
Stage X-Y double layer
size: 200×150mm
travel: 78×50mm
Condenser pre-centered condenser with diaphragm indicator scale markings NA 0.1~1.1
Diopter adjustment +8 diopter
Observation tube 30° hinged trinocular observation tube pupil distance adjustment range 45~78mm
Power supply power adapter
Dimension (W×D×H) 391×220×513mm
Weight 18kg
