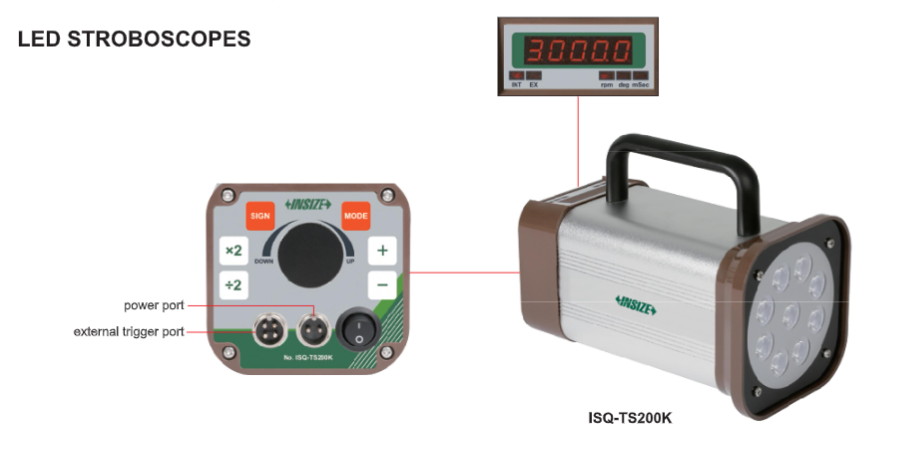

LED Stroboscope ISQ-TS200K

Save 25%

Model no.: ISQ-TS200K
Price:
Rs. 119,679 Rs. 159,175

Tax included Shipping calculated at checkout

Description

Features:-

  • Quick and easy operation with rotary encoder and buttons
  • Adjust the LED flash frequency according to the rotational speed or cyclic movement
  • frequency of the workpiece to make the workpiece appear stationary
  • Measure the rotational speed or cyclic movement frequency of the workpiece without physical contact or reflective stickers
  • External trigger mode allows automatic tracking with external sensors such as

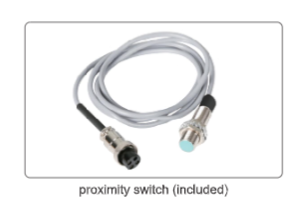

  • proximity switch (PNP-NO), Hall switch (PNP-NO), photoelectric switch, encoder etc.
  • Adjustable brightness and single flash duration
  • Built-in storage memory for flash frequency and parameter setting
  • Low battery indication
  • MATERIAL AGAINST ORDER

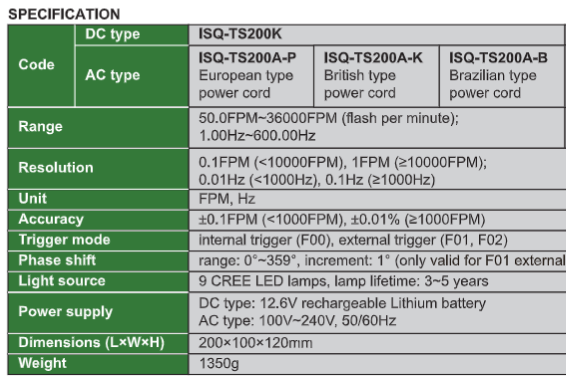

Code DC type ISQ-TS200K
AC type ISQ-TS200A-P European type power cord
ISQ-TS200A-K British type power cord
ISQ-TS200A-B Brazilian type power cord
Range 50.0FPM36000FPM (flash per minute); 1.00Hz600.00Hz
Resolution 0.1FPM (<10000FPM), 1FPM (≥10000FPM); 0.01Hz (<1000Hz), 0.1Hz (≥1000Hz)
Unit FPM, Hz
Accuracy ±0.1FPM (<1000FPM), ±0.01% (≥1000FPM)
Trigger mode internal trigger (F00), external trigger (F01, F02)
Phase shift range: 0°~359°, increment: 1° (only valid for F01 external trigger mode)
Light source 9 CREE LED lamps, lamp lifetime: 3~5 years
Power supply DC type: 12.6V rechargeable Lithium battery AC type: 100V~240V, 50/60Hz
Dimensions (L×W×H) 200×100×120mm
Weight 1350g
