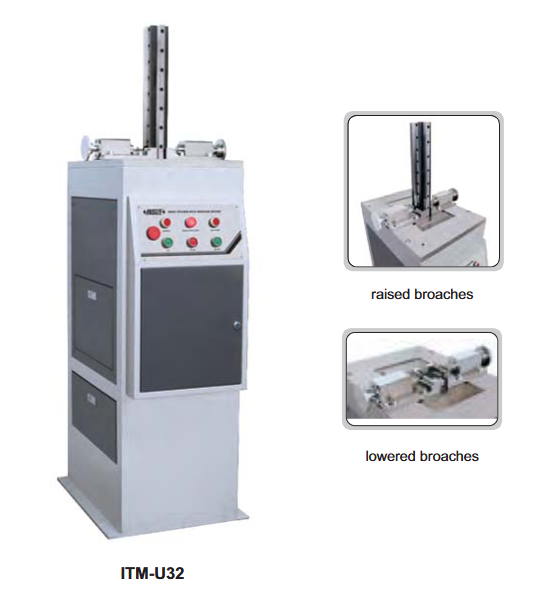

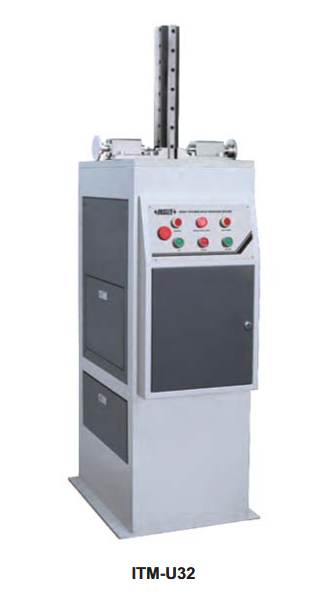

Impact Specimen Notch Broaching Machine (Double Broaches) - ITM

Save 25%

Size: ITM-U32
Price:
Rs. 700,515 Rs. 931,685

Tax included Shipping calculated at checkout

Description

Features:-

  • Conforms with ISO 148, ISO 83 and EN 10045 standards
  • One-time broaching forming, hydraulic transmission, special internal lubrication device to avoid damage of the broaches
  • Dual-station broach, two specimen notches can be processed at the same time

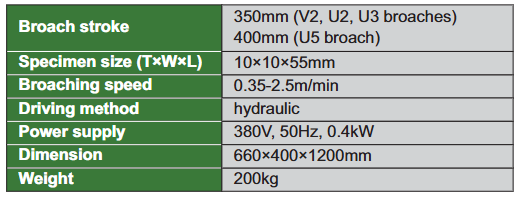

Broach stroke 350mm (V2, U2, U3 broaches)400mm (U5 broach)
Specimen size (T×W×L) 10×10×55mm
Broaching speed 0.35-2.5m/min
Driving method hydraulic
Power supply 380V, 50Hz, 0.4kW
Dimension 660×400×1200mm
Weight 200kg
