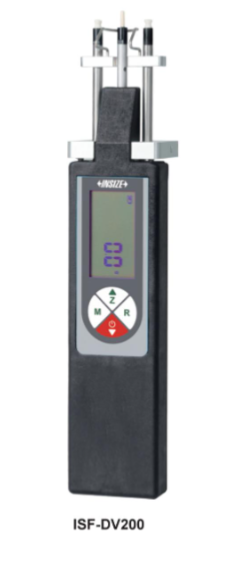

High Speed Wire Tension Meters - ISF-DV

Save 25%

Model no.: ISF-DV500
Price:
Rs. 124,065 Rs. 165,009

Tax included Shipping calculated at checkout

Description

Features:-

  • For tension measurement of high-speed threads: textiles, chemical fibers, fine wires
    With cerarnic wire post measuring head
  • Unit: g, cN
  • Record max, min, avg during measurement
  • Built-in lithium battery, fully charged, operate for about 20h
  • Supplied with manufacturer inspection certificate
  • MATERIAL AGAINST ORDER

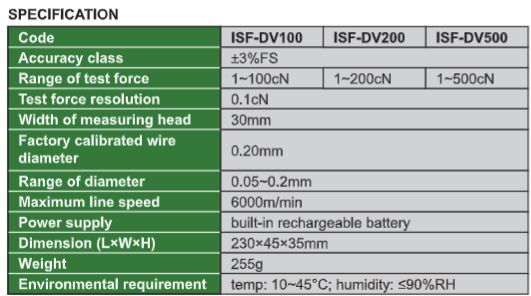

Specification ISF-DV500
Accuracy class ±3%FS
Range of test force 1~500 cN
Test force resolution 0.1 cN
Width of measuring head 30 mm
Factory calibrated wire diameter 0.20 mm
Range of diameter 0.05~0.2 mm
Maximum line speed 6000 m/min
Power supply Built-in rechargeable battery
Dimension (L×W×H) 230×45×35 mm
