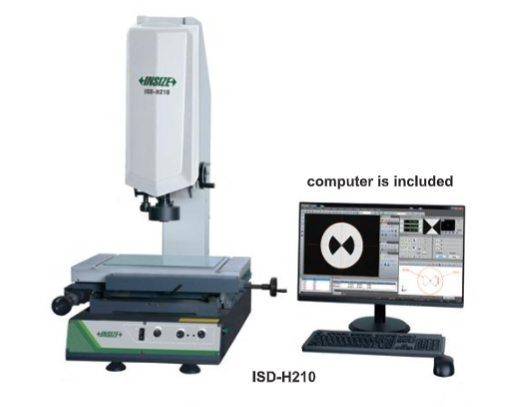

High-Definition Manual Manual Vision Measuring Systems - ISD-H

Save 25%

Model no.: ISD-H210
Price:
Rs. 698,120 Rs. 928,500

Tax included Shipping calculated at checkout

Description

Features:-

  • High-definition image
  • Large view field
  • Electronic magnification feedback lens: when the objective lens magnification is
  • changed manually, the software automatically selects the corresponding pre-
  • calibration data and calibration is not needed
  • Supplied with manufacturer inspection certificate

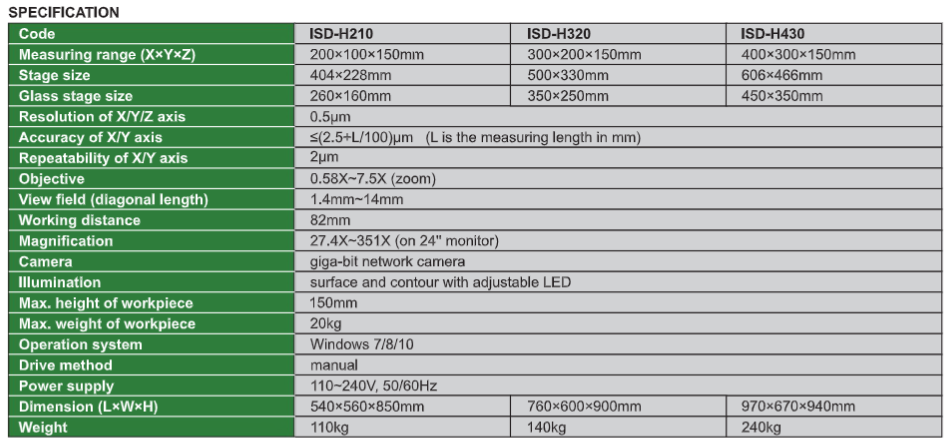

Code ISD-H210 ISD-H320 ISD-H430
Measuring range (XxYxZ) 200×100×150mm 300×200×150mm 400×300×150mm
Stage size 404×228mm 500×330mm 606×466mm
Glass stage size 260×160mm 350×250mm 450×350mm
Resolution of X/Y/Z axis 0.5µm
Accuracy of X/Y axis ≤(2.5+L/100)µm (L is the measuring length in mm)
Repeatability of X/Y axis 2µm
Objective 0.58X~7.5X (zoom)
View field (diagonal length) 1.4mm~14mm
Working distance 82mm
Magnification 27.4X~351X (on 24" monitor)
Camera giga-bit network camera
Illumination surface and contour with adjustable LED
Max. height of workpiece 150mm
Max. weight of workpiece 20kg
Operation system Windows 7/8/10
Drive method manual
Power supply 110~240V, 50/60Hz
Dimension (L×W×H) 540×560×850mm 760×600×900mm 970×670×940mm
Weight 110kg 140kg 240kg
