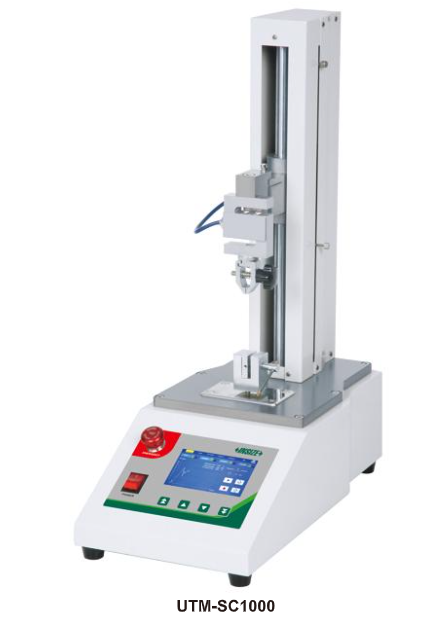

Electronic Tensile & Compression Testing Machines - UTM-SC

Save 92%

Size: UTM-SC500
Price:
Rs. 381,665 Rs. 5,076,099

Tax included Shipping calculated at checkout

Description

Features:-

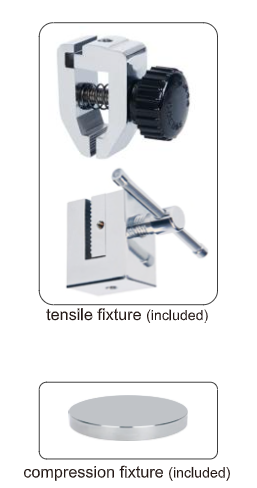

  • Suitable for tensile, peeling and tearing tests of metal wires, metal foils, plastics, food packaging, textile fibres, wires and cables, adhesives, connectors and other industries
  • Fixed force test, fixed displacement test, fixed deformation test and cycle test can be realised

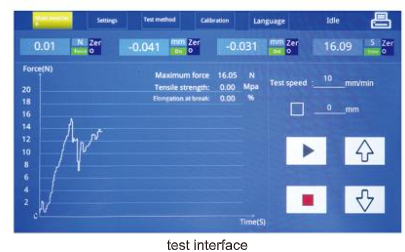

  • Automatically obtain the maximum force, tensile strength, compressive strength, elongation at break, average peeling strength, average peeling force and other test data
  • Overload emergency shutdown protection device, up and down travel limit protection device
  • Leakage automatic power-off system, automatic breakpoint stop function
  • https://youtu.be/6GZtgsSj63Q

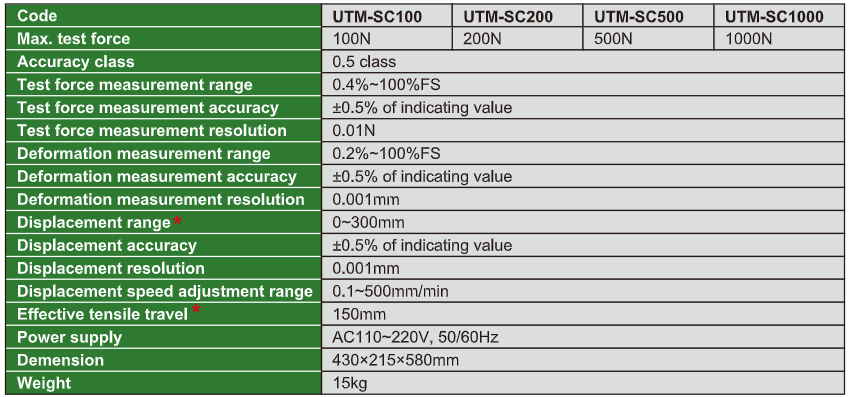

Code UTM-SC100 UTM-SC200 UTM-SC500 UTM-SC1000
Max. test force 100N 200N 500N 1000N
Accuracy class 0.5 class
Test force measurement range 0.4%~100%FS
Test force measurement accuracy ±0.5% of indicating value
Test force measurement resolution 0.01N
Deformation measurement range 0.2%~100%FS
Deformation measurement accuracy ±0.5% of indicating value
Deformation measurement resolution 0.001mm
Displacement range * 0~300mm
Displacement accuracy ±0.5% of indicating value
Displacement resolution 0.001mm
Displacement speed adjustment range 0.1~500mm/min
Effective tensile travel * 150mm
Power supply AC110~220V, 50/60Hz
Demension 430×215×580mm
Weight 15kg
