Eddy Current Conductivity Tester - 0420

Save 25%

Size: 0420-EL60
Price:
Rs. 624,505 Rs. 830,590

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Measure conductivity (MS/m, %IACS) and resistivity (Ω-mm²/m) of non-ferromagnetic metals or alloys with eddy current phase detection
  • With temperature compensation, even when the temperature of the calibration block and the material are different, test results can be automatically compensated
  • Lift-off compensation function ensures accurate results when there are non-conductive layers such as coatings, dust, rough surfaces, etc. and reduces measurement error caused by operation as well
  • Measure with high speed and efficiency, results show on screen after probe touch with the material in 1 second
  • Data can be saved manually or automatically and exported to Excel with computer software

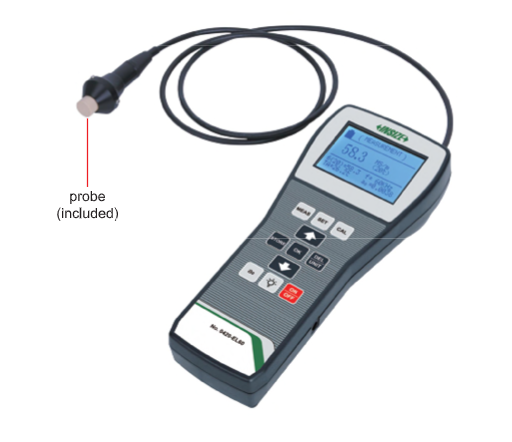

  • Wear-resistant and heat-resistant probe
  • Unit switch
  • Display with backlight
  • Language English, Chinese, Japanese

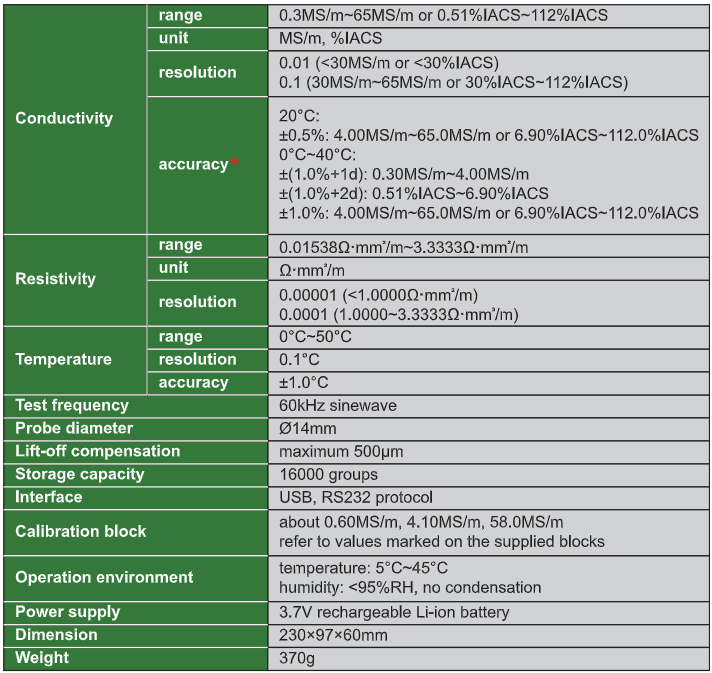

Conductivity range 0.3MS/m~65MS/m or 0.51%IACS~112%IACS
unit MS/m %IACS
resolution 0.01 (<30MS/m or <30%IACS)
0.1 (30MS/m~65MS/m or 30%IACS~112%IACS)
accuracy 20°C:
±0.5% 4.00MS/m~65.0MS/m or 6.90%IACS~112.0%IACS
0°C~40°C:
±(1.0%+1d) 0.30MS/m~4.00MS/m
±(1.0%+2d) 0.51%IACS~6.90%IACS
±1.0% 4.00MS/m~65.0MS/m or 6.90%IACS~112.0%IACS
Resisitivity range 0.01538Ω-mm²/m~3.3333Ω-mm²/m
unit Ω-mm²/m
resolution 0.00001 (<1.0000Ω-mm²/m)
0.0001 (1.0000~3.3333Ω-mm²/m)
Temperature range 0°C~50°C
resolution 0.1°C
accuracy ±1.0°C
Test frequency 60kHz sinewave
Probe diameter Ø14mm
Lift-off compensation maximum 500μm
Storage capacity 16000 groups
Interface USB RS232 protocol

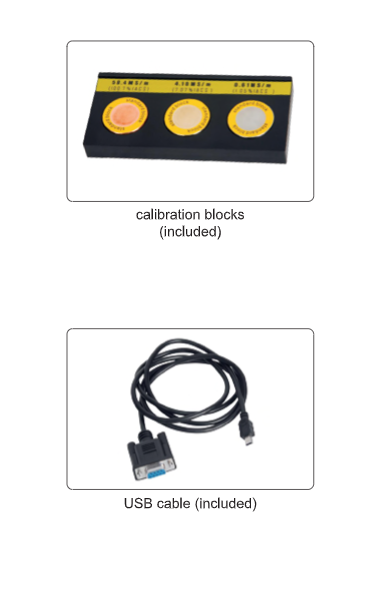

Calibration block about 0.60MS/m 4.10MS/m 58.0MS/m
refer to values marked on the supplied blocks
Operation environment temperature 5°C~45°C
humidity <95%RH no condensation
Power supply 3.7V rechargeable Li-ion battery
Dimension 230×97×60mm
Weight 370g
