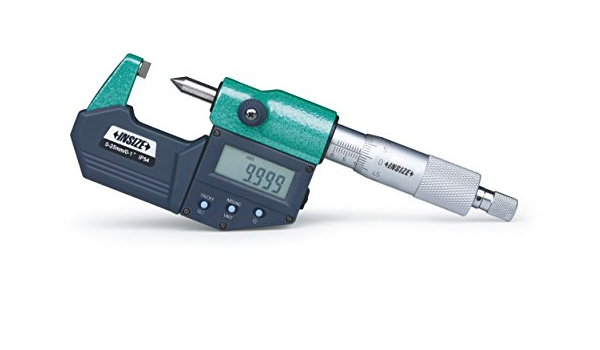

Digital Crimp Height Micrometer- 3566

Save 25%

Size: 3566-25BA (0-25mm)
Price:
Rs. 15,320 Rs. 20,375

Tax included Shipping calculated at checkout

Description

Features:-

  • Measure the height of crimp contact
  • Resolution : 0.001mm/0.00005''
  • IP65 dust/waterproof
  • Button function: on/off, set, mm/inch, ABS/INC
  • Data Output
  • LR44 battery, automatic power off
  • Ratchet stop
  • Optional accessory : data output cable (code 7315,-7302,-7305-)

RELATIVE PRODUCT: DIGITAL CRIMP HEIGHT CALIPER (CODE 1165-150A)



SPECIFICATIONS:-

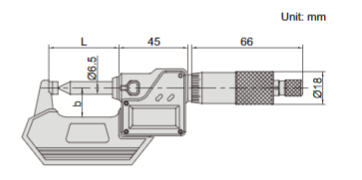

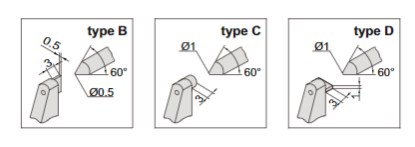

Code Range Type Accuracy L b
3566-25BA 0-25mm/0-1" B ±4µm 34.5 25
3566-25CA 0-25mm/0-1" C ±4µm 34.5 25
3566-25DA 0-25mm/0-1" D ±5µm 34.5 25
